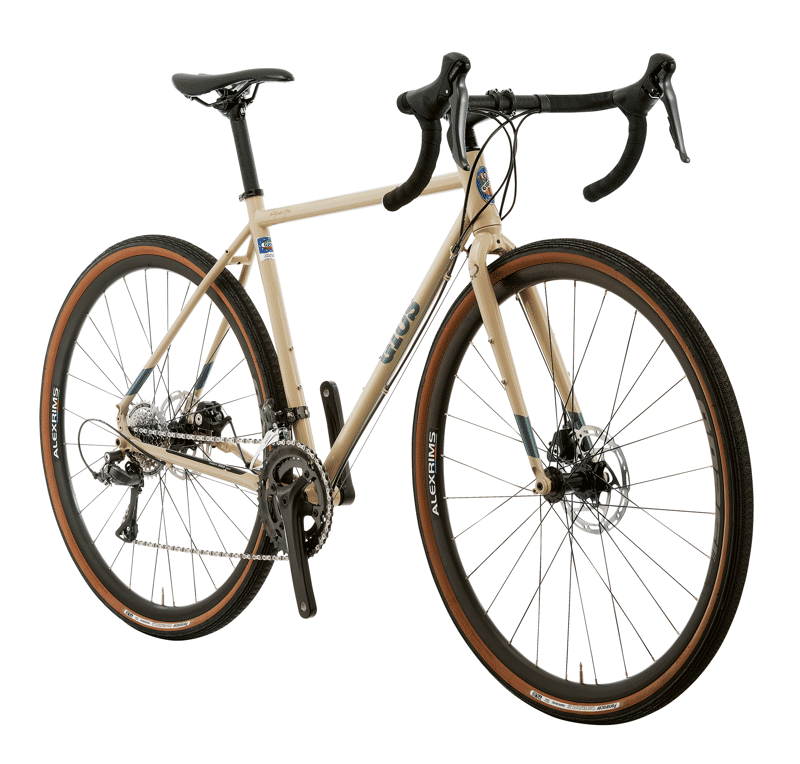

2023 Gios MITO CLARIS SAND geometry
Full frame geometry for the 2023 Gios MITO CLARIS SAND, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 525 | 368.6 | 74.5 | 71 | 105 | 515 | 480 | 745 | 425 | 45 |
| 51 | 536.5 | 371.1 | 73.5 | 71 | 115 | 530 | 510 | 765 | 425 | 45 |
| 54 | 546.5 | 377.8 | 73 | 71 | 125 | 545 | 540 | 787 | 425 | 45 |
| 57 | 565.8 | 387 | 73 | 71 | 145 | 560 | 570 | 809 | 425 | 45 |
All measurements in millimetres unless marked (°) for angles.
