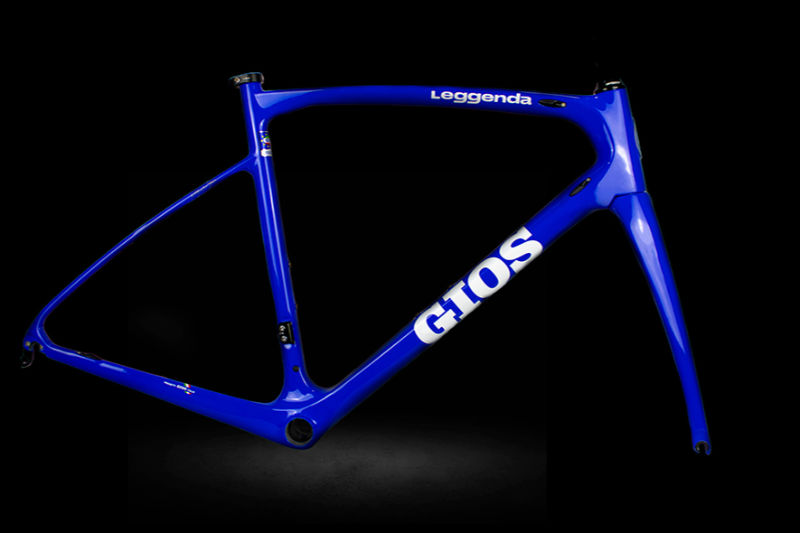

2025 Gios Leggenda Rim geometry
Full frame geometry for the 2025 Gios Leggenda Rim, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 470 | 511.4 | 382.7 | 75.5 | 72.3 | 110 | 515 | 470 | 405 | 45 |
| 500 | 526.5 | 384 | 74.5 | 72.5 | 125 | 530 | 500 | 405 | 45 |
| 530 | 554.1 | 386.7 | 73.5 | 73 | 151 | 545 | 530 | 410 | 45 |
| 560 | 571.2 | 390.4 | 73 | 73 | 170 | 565 | 560 | 410 | 45 |
| 590 | 592.4 | 401.1 | 72.8 | 73.6 | 190 | 585 | 590 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
