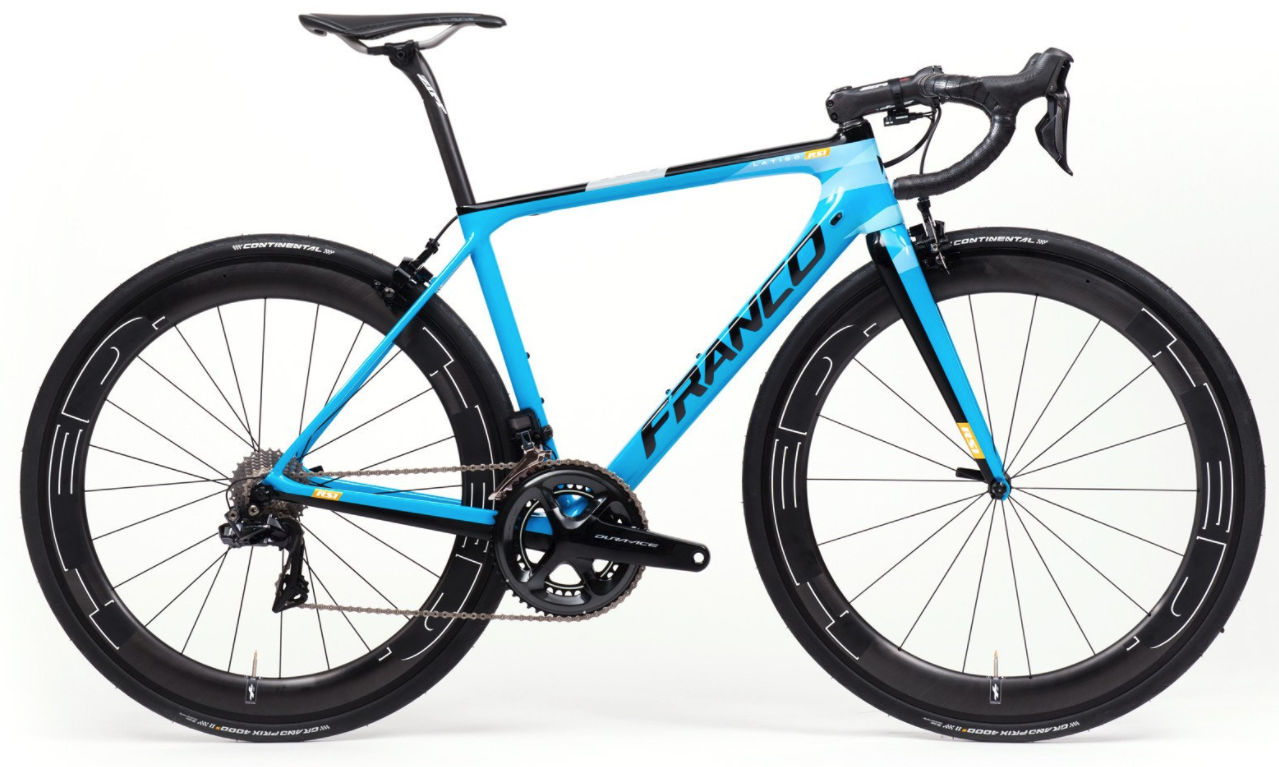

2017 Franco Latigo RS1 geometry
Full frame geometry for the 2017 Franco Latigo RS1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 372 | 75 | 72.9 | 120 | 513 | 435 | 72 | 563 | 405 | 957 | 45 | 58 |
| S | 543 | 381 | 74 | 73.2 | 140 | 537 | 465 | 70 | 575 | 405 | 970 | 45 | 57 |
| M | 561 | 390 | 73.5 | 73.2 | 159 | 556 | 500 | 70 | 589 | 405 | 984 | 45 | 57 |
| L | 579 | 399 | 73 | 73.2 | 181 | 576 | 535 | 68 | 604 | 410 | 1005 | 45 | 57 |
| XL | 597 | 408 | 72.5 | 73.2 | 199 | 596 | 565 | 68 | 618 | 410 | 1019 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
