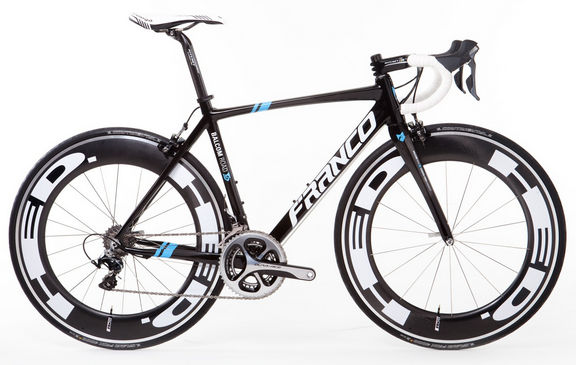

2013 Franco Balcom S geometry
Full frame geometry for the 2013 Franco Balcom S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 384 | 75 | 72.5 | 120 | 525 | 480 | 710 | 73 | 578 | 405 | 972 | 45 | 58 |
| S | 543 | 384 | 74 | 73 | 140 | 540 | 510 | 739 | 70 | 580 | 405 | 975 | 45 | 55 |
| M | 557 | 390 | 73.5 | 73 | 155 | 555 | 540 | 765 | 70 | 590 | 405 | 985 | 45 | 55 |
| L | 574 | 395 | 73 | 73 | 175 | 570 | 570 | 791 | 68 | 600 | 410 | 1001 | 45 | 55 |
| XL | 588 | 410 | 73 | 73 | 190 | 590 | 600 | 816 | 68 | 620 | 410 | 1021 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
