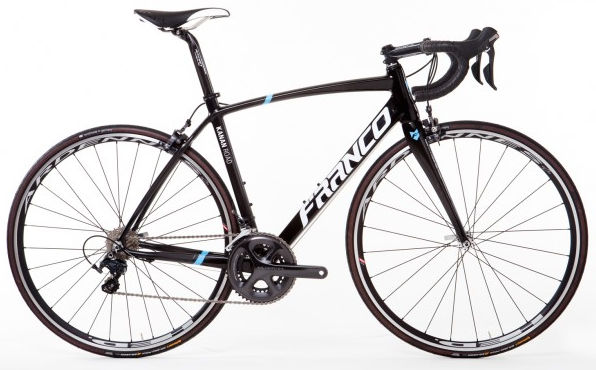

2013 Franco Kanan geometry
Full frame geometry for the 2013 Franco Kanan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 545 | 378 | 75 | 72.5 | 140 | 525 | 480 | 725 | 73 | 578 | 405 | 973 | 45 | 58 |
| 51 | 557 | 380 | 74 | 73 | 155 | 540 | 510 | 755 | 70 | 580 | 405 | 975 | 45 | 55 |
| 54 | 576 | 384 | 73.5 | 73 | 175 | 555 | 540 | 783 | 70 | 590 | 405 | 985 | 45 | 55 |
| 57 | 588 | 390 | 73 | 73 | 190 | 570 | 570 | 810 | 68 | 600 | 410 | 1001 | 45 | 55 |
| 60 | 617 | 401 | 73 | 73 | 220 | 590 | 600 | 837 | 68 | 620 | 410 | 1021 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
