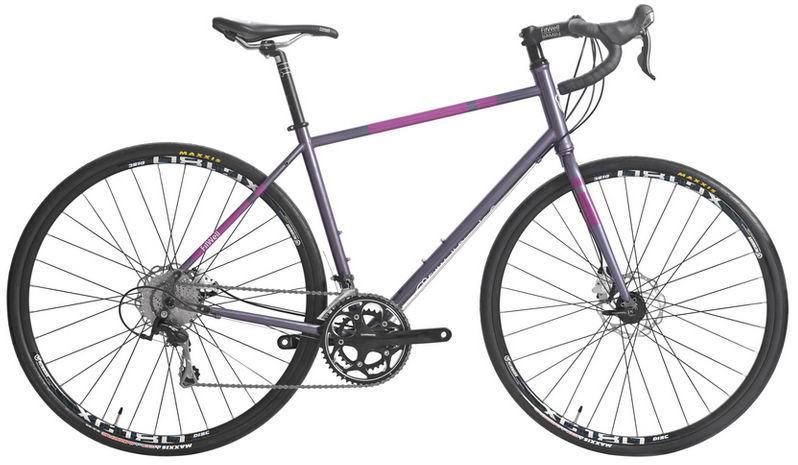

2015 Fitwell Riley Fahrlander I geometry
Full frame geometry for the 2015 Fitwell Riley Fahrlander I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 570 | 350 | 72 | 71.5 | 130 | 536 | 438 | 728 | 80 | 567 | 432 | 986 | 45 | 68 |
| S | 600 | 370 | 72 | 71.5 | 162 | 565 | 461 | 754 | 80 | 596 | 432 | 1015 | 45 | 68 |
| M | 630 | 390 | 72 | 71.5 | 195 | 595 | 501 | 788 | 78 | 627 | 436 | 1051 | 45 | 68 |
| L | 660 | 410 | 72 | 71.5 | 229 | 625 | 459 | 828 | 76 | 657 | 440 | 1086 | 45 | 68 |
| XL | 690 | 430 | 72 | 71.5 | 267 | 655 | 569 | 856 | 70 | 688 | 448 | 1127 | 45 | 68 |
All measurements in millimetres unless marked (°) for angles.
