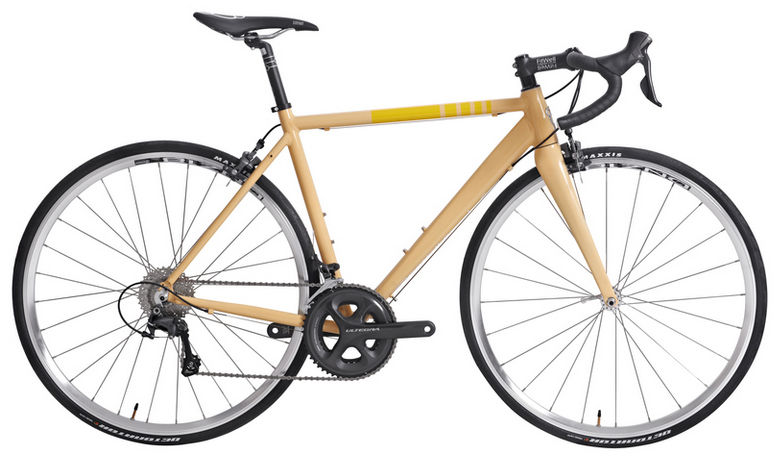

2015 Fitwell Drew deGroot I geometry
Full frame geometry for the 2015 Fitwell Drew deGroot I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 540 | 365 | 72.5 | 73 | 126 | 535 | 472 | 743 | 80 | 557 | 419 | 963 | 45 | 59 |
| M | 570 | 380 | 73 | 73 | 159 | 554 | 499 | 774 | 78 | 582 | 416 | 985 | 45 | 59 |
| L | 600 | 395 | 73 | 73 | 193 | 578 | 526 | 804 | 76 | 605 | 421 | 1014 | 45 | 59 |
| XL | 630 | 410 | 73 | 72.5 | 226 | 603 | 548 | 522 | 76 | 635 | 426 | 1050 | 45 | 62 |
| XXL | 660 | 425 | 73 | 72.5 | 270 | 627 | 566 | 852 | 65 | 662 | 431 | 1085 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
