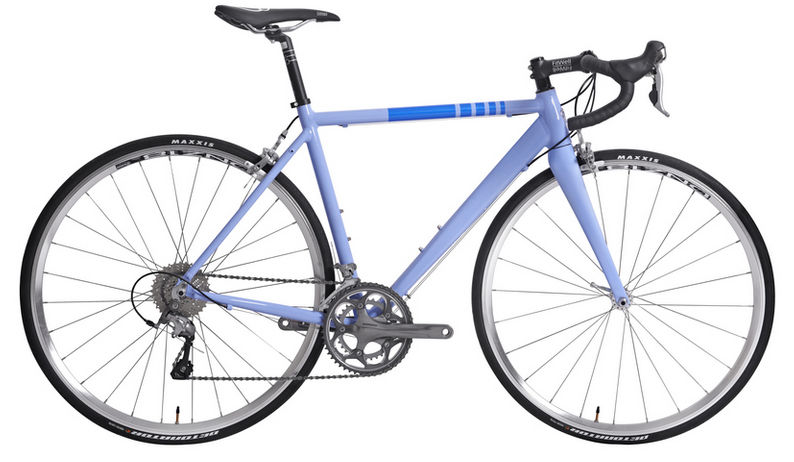

2015 Fitwell Alex deGroot I geometry
Full frame geometry for the 2015 Fitwell Alex deGroot I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 510 | 380 | 72.5 | 73 | 94 | 540 | 495 | 735 | 80 | 562 | 419 | 968 | 45 | 59 |
| M | 540 | 400 | 73 | 73 | 128 | 565 | 523 | 766 | 78 | 593 | 416 | 996 | 45 | 59 |
| L | 570 | 420 | 73 | 73 | 162 | 594 | 542 | 788 | 76 | 621 | 421 | 1030 | 45 | 59 |
| XL | 600 | 440 | 73 | 72.5 | 196 | 624 | 562 | 809 | 76 | 655 | 426 | 1070 | 45 | 62 |
| XXL | 630 | 460 | 73 | 72.5 | 238 | 653 | 581 | 838 | 65 | 687 | 431 | 1110 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
