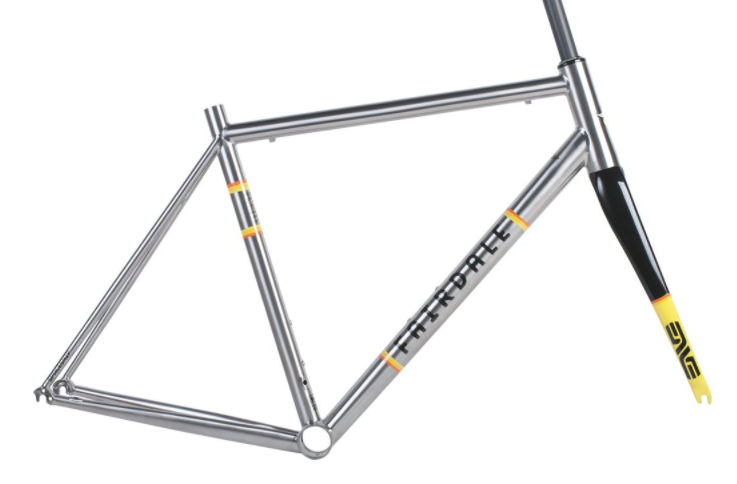

2018 Fairdale Spaceship geometry
Full frame geometry for the 2018 Fairdale Spaceship, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 548 | 388 | 73.5 | 73 | 145 | 550 | 510 | 771 | 70 | 583 | 408 | 981 | 43 | 59 |
| 56 | 567 | 391 | 73 | 73.5 | 165 | 565 | 530 | 790 | 70 | 588 | 408 | 986 | 43 | 56 |
| 58 | 588 | 400 | 73 | 73.5 | 185 | 580 | 550 | 809 | 70 | 602 | 408 | 1000 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
