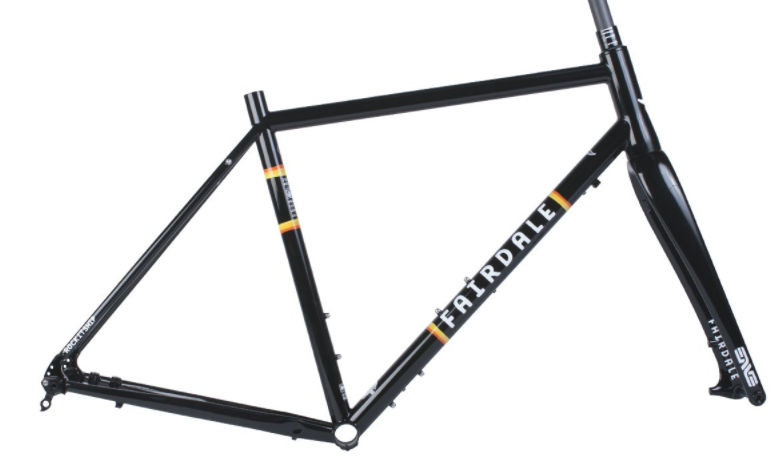

2018 Fairdale Rockitship geometry
Full frame geometry for the 2018 Fairdale Rockitship, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 552 | 382 | 74.5 | 71 | 130 | 535 | 490 | 774 | 70 | 602 | 430 | 1022 | 47 | 72 |
| 54 | 568 | 382 | 74 | 71.5 | 145 | 545 | 510 | 790 | 70 | 603 | 430 | 1023 | 47 | 69 |
| 56 | 584 | 392 | 73.5 | 72 | 160 | 565 | 530 | 806 | 70 | 613 | 430 | 1033 | 47 | 65 |
| 58 | 600 | 396 | 73 | 72.5 | 175 | 580 | 550 | 824 | 70 | 617 | 430 | 1037 | 47 | 62 |
All measurements in millimetres unless marked (°) for angles.
