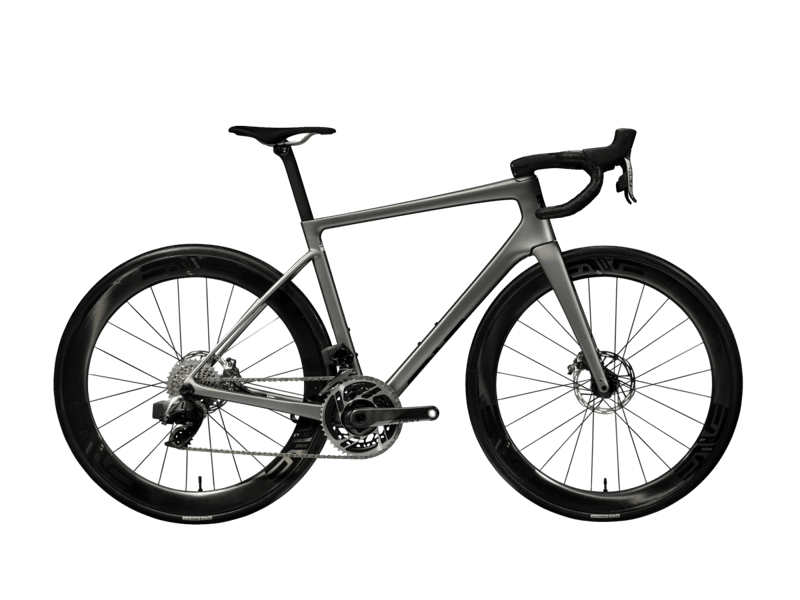

2023 Enve Melee geometry
Full frame geometry for the 2023 Enve Melee, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 509 | 370 | 75.1 | 71.1 | 105 | 506 | 417 | 693 | 75 | 582 | 410 | 55 |
| 50 | 525 | 376 | 74.5 | 71.5 | 120 | 522 | 434 | 710 | 75 | 585 | 410 | 51 |
| 52 | 539 | 381 | 74 | 72.2 | 130 | 536 | 452 | 728 | 75 | 584 | 410 | 47 |
| 54 | 552 | 386 | 73.8 | 72.4 | 145 | 547 | 466 | 744 | 73 | 592 | 410 | 47 |
| 56 | 571 | 394 | 73.5 | 73.3 | 160 | 563 | 490 | 768 | 73 | 593 | 410 | 43 |
| 58 | 589 | 400 | 73.2 | 73.3 | 180 | 578 | 508 | 787 | 71 | 605 | 412 | 43 |
| 60 | 609 | 408 | 72.7 | 73.6 | 200 | 598 | 531 | 809 | 71 | 611 | 412 | 39 |
All measurements in millimetres unless marked (°) for angles.
