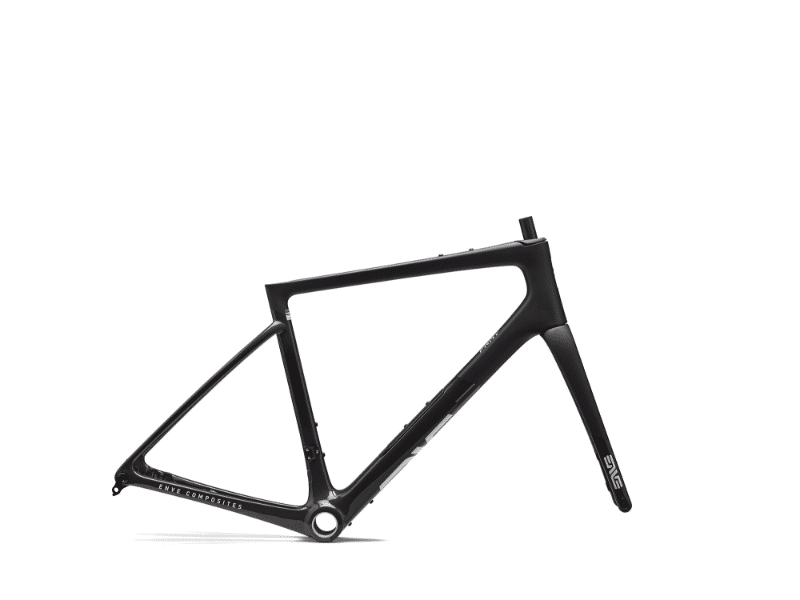

2026 Enve Fray geometry
Full frame geometry for the 2026 Enve Fray, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 522 | 365 | 75 | 70.9 | 107 | 505 | 425 | 699 | 78 | 582 | 415 | 985 | 55 | 60.4 |
| 50 | 540 | 371 | 74.5 | 71.3 | 125 | 521 | 443 | 719 | 78 | 591 | 415 | 994 | 55 | 58.1 |
| 52 | 556 | 377 | 74 | 72 | 137 | 536 | 464 | 739 | 78 | 591 | 415 | 994 | 51 | 57.6 |
| 54 | 573 | 383 | 73.8 | 72 | 157 | 550 | 479 | 754 | 76 | 603 | 415 | 1006 | 51 | 57.6 |
| 56 | 591 | 389 | 73.5 | 72.6 | 172 | 564 | 501 | 775 | 76 | 604 | 415 | 1008 | 47 | 58 |
| 58 | 610 | 396 | 73.2 | 72.6 | 194 | 580 | 519 | 793 | 74 | 615 | 417 | 1024 | 47 | 58 |
| 60 | 633 | 403 | 72.8 | 73.3 | 215 | 600 | 547 | 820 | 74 | 620 | 420 | 1029 | 43 | 57.8 |
All measurements in millimetres unless marked (°) for angles.
