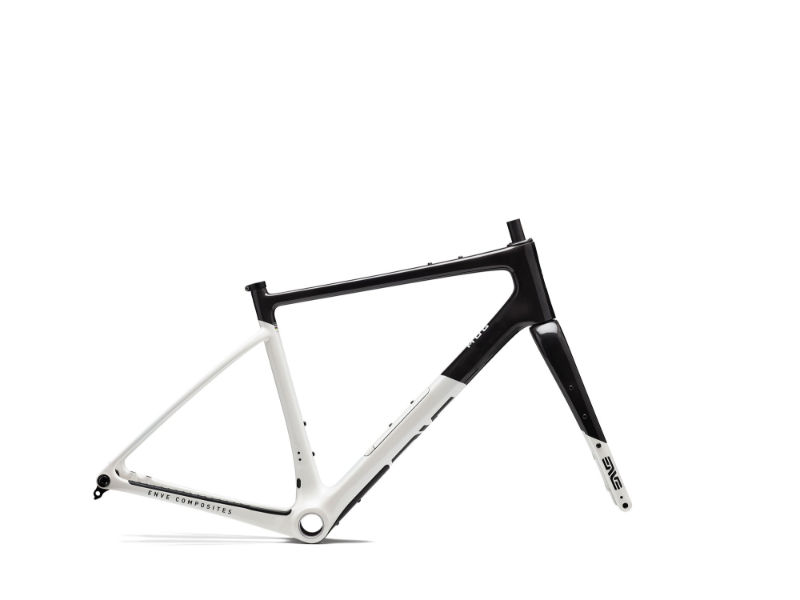

2026 Enve MOG geometry
Full frame geometry for the 2026 Enve MOG, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 520 | 367 | 74.5 | 71 | 92 | 511 | 439 | 705 | 77 | 580 | 420 | 993 | 57 | 62.3 |
| 52 | 543 | 378 | 74 | 71 | 117 | 534 | 459 | 725 | 77 | 599 | 420 | 1012 | 57 | 62.3 |
| 54 | 565 | 389 | 73.8 | 71.3 | 140 | 554 | 480 | 747 | 75 | 613 | 420 | 1027 | 55 | 62.8 |
| 56 | 587 | 397 | 73.5 | 71.3 | 163 | 571 | 500 | 767 | 75 | 629 | 420 | 1042 | 55 | 62.8 |
| 58 | 605 | 405 | 73.2 | 71.5 | 183 | 588 | 518 | 787 | 73 | 639 | 420 | 1053 | 53 | 63.2 |
| 60 | 630 | 415 | 72.8 | 71.5 | 209 | 611 | 540 | 809 | 73 | 657 | 420 | 1071 | 53 | 63.2 |
All measurements in millimetres unless marked (°) for angles.
