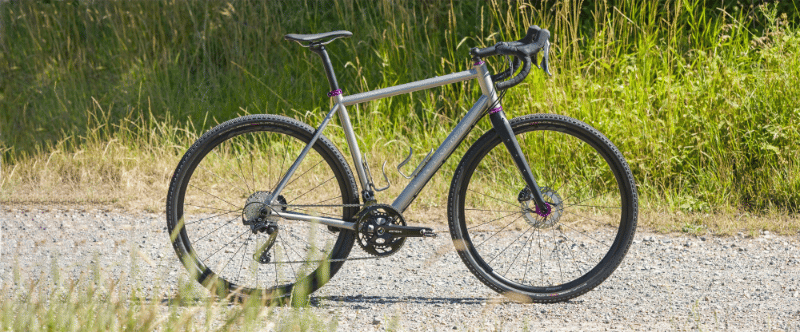

2025 Enigma Escape geometry
Full frame geometry for the 2025 Enigma Escape, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 551 | 360 | 76 | 70 | 115 | 500 | 450 | 75 | 435 | 1005 | 50 |
| 52 | 567 | 365 | 75 | 70.5 | 130 | 520 | 480 | 75 | 435 | 1016 | 50 |
| 54 | 593 | 368 | 74 | 71 | 155 | 540 | 510 | 75 | 435 | 1023 | 50 |
| 56 | 612 | 371 | 73 | 71 | 175 | 560 | 540 | 75 | 435 | 1033 | 50 |
| 58 | 633 | 385 | 73 | 71.5 | 195 | 580 | 570 | 75 | 435 | 1048 | 50 |
| 60 | 652 | 400 | 73 | 71.5 | 215 | 600 | 600 | 75 | 435 | 1069 | 50 |
All measurements in millimetres unless marked (°) for angles.
