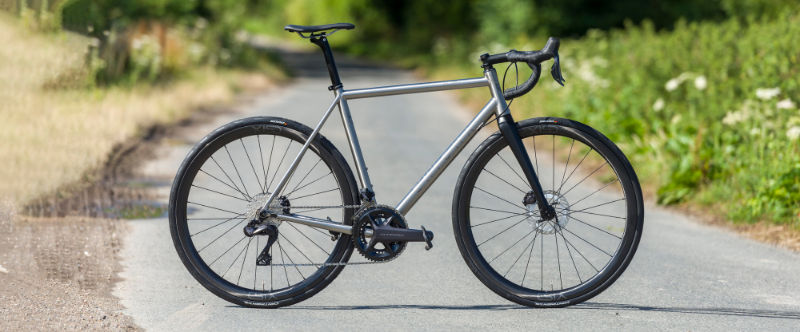

2025 Enigma Elan geometry
Full frame geometry for the 2025 Enigma Elan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 514 | 365 | 75.5 | 71.5 | 105 | 500 | 445 | 75 | 420 | 975 | 47 |
| 52 | 535 | 375 | 75 | 72 | 125 | 520 | 485 | 75 | 420 | 987 | 47 |
| 54 | 556 | 385 | 74.5 | 72.5 | 145 | 540 | 520 | 75 | 420 | 999 | 47 |
| 56 | 577 | 394 | 74 | 73 | 165 | 560 | 550 | 75 | 420 | 1010 | 47 |
| 58 | 598 | 403 | 73.5 | 73.5 | 185 | 580 | 575 | 75 | 420 | 1020 | 47 |
| 60 | 618 | 412 | 73 | 74 | 205 | 600 | 595 | 75 | 420 | 1030 | 47 |
All measurements in millimetres unless marked (°) for angles.
