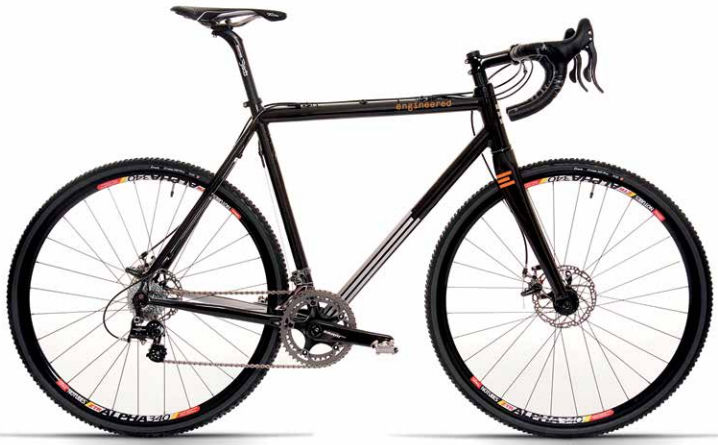

2016 Engineered Zondag geometry
Full frame geometry for the 2016 Engineered Zondag, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 532 | 375 | 75 | 71 | 100 | 520 | 517 | 802 | 67 | 586 | 428 | 1005 |
| 52 | 545 | 377 | 74 | 71.5 | 112 | 535 | 532 | 817 | 67 | 588 | 428 | 1007 |
| 54 | 555 | 381 | 73.5 | 72 | 123 | 546 | 552 | 836 | 65 | 591 | 428 | 1010 |
| 56 | 570 | 385 | 73 | 72 | 139 | 560 | 567 | 852 | 65 | 600 | 428 | 1020 |
| 58 | 585 | 390 | 73 | 72 | 155 | 570 | 582 | 867 | 65 | 610 | 428 | 1030 |
| 60 | 600 | 396 | 73 | 72 | 173 | 580 | 597 | 885 | 62 | 622 | 428 | 1042 |
All measurements in millimetres unless marked (°) for angles.
