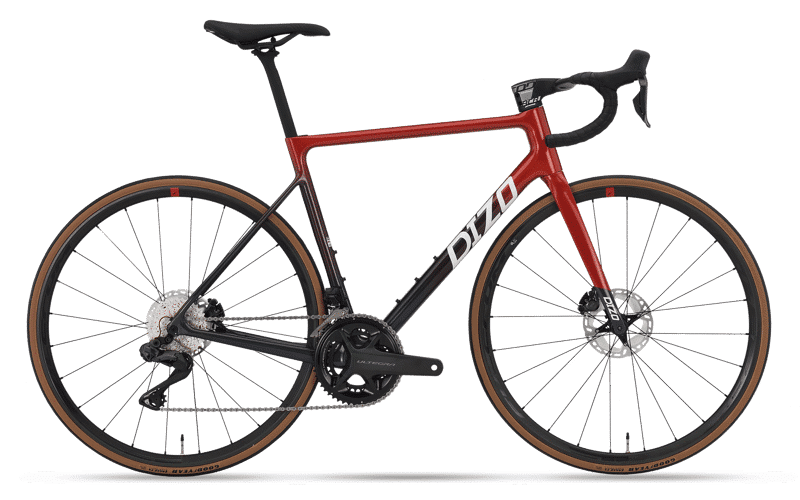

2023 Dizo Ourea geometry
Full frame geometry for the 2023 Dizo Ourea, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS 475 | 514 | 375 | 75.5 | 71.8 | 109.4 | 508 | 475 | 74 | 577.5 | 410 | 976 |
| S 490 | 527 | 380 | 74 | 72.5 | 120.3 | 531 | 489 | 74 | 580 | 410 | 978.5 |
| M 520 | 559 | 391 | 73.5 | 73 | 152 | 556.6 | 521 | 72 | 591.3 | 410 | 990.6 |
| L 550 | 591 | 402 | 73.5 | 73.5 | 183.6 | 577 | 550 | 72 | 606.9 | 410 | 1006.3 |
| XL 579 | 612 | 408 | 73 | 74 | 204 | 595 | 572 | 72 | 614 | 410 | 1013 |
All measurements in millimetres unless marked (°) for angles.
