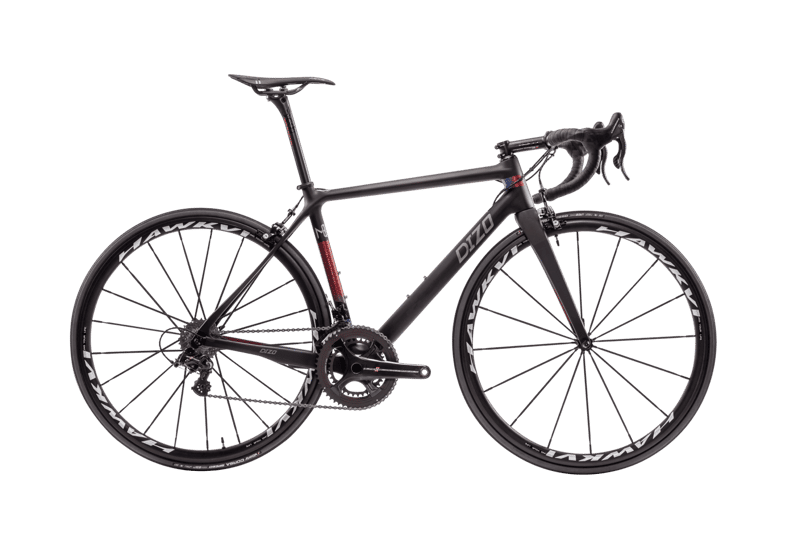

2019 Dizo M8 geometry
Full frame geometry for the 2019 Dizo M8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 501 | 367 | 75 | 70.5 | 110 | 501 | 440 | 67 | 571 | 406 | 979 |
| S | 531 | 381 | 74 | 72 | 135 | 534 | 485 | 67 | 578 | 406 | 986 |
| M | 545 | 388 | 73.5 | 72.5 | 145 | 549 | 515 | 67 | 586 | 406 | 996 |
| L | 564 | 394 | 73 | 73 | 165 | 566 | 540 | 67 | 593 | 406 | 1001 |
| XL | 588 | 400 | 72.5 | 73 | 190 | 586 | 570 | 67 | 613 | 406 | 1021 |
All measurements in millimetres unless marked (°) for angles.
