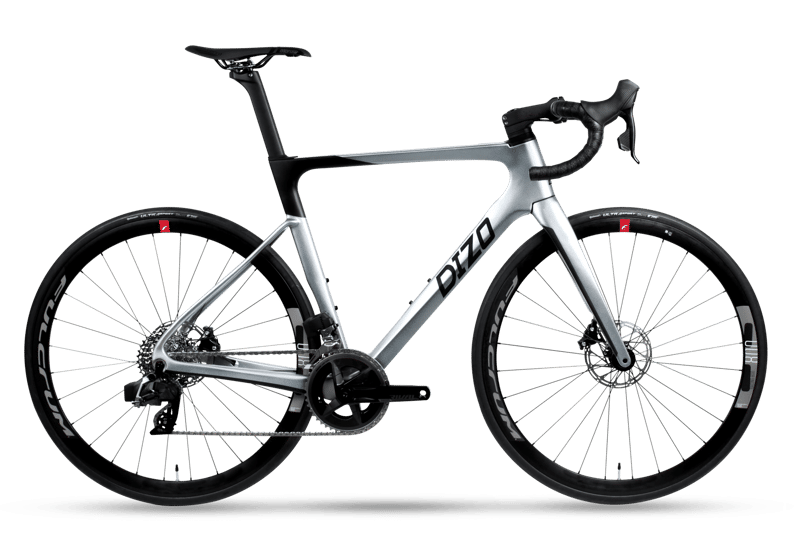

2022 Dizo Actus geometry
Full frame geometry for the 2022 Dizo Actus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 505.1 | 365.2 | 74.5 | 71.5 | 95 | 505 | 470 | 68 | 568.3 | 408 | 966.5 |
| XS | 514.6 | 372.1 | 74.5 | 71.5 | 105 | 515 | 490 | 68 | 578.2 | 408 | 976.5 |
| S | 519.6 | 381 | 74 | 72 | 108.5 | 530 | 510 | 68 | 584.3 | 408 | 982.7 |
| M | 540.1 | 395.1 | 74 | 72 | 130 | 550 | 530 | 68 | 604.9 | 408 | 1003.4 |
| L | 551.4 | 401.7 | 73.5 | 72.5 | 140 | 565 | 550 | 68 | 610.3 | 408 | 1008.8 |
| XL | 560.9 | 408.5 | 73 | 72.5 | 150 | 580 | 570 | 68 | 619.8 | 408 | 1018.3 |
All measurements in millimetres unless marked (°) for angles.
