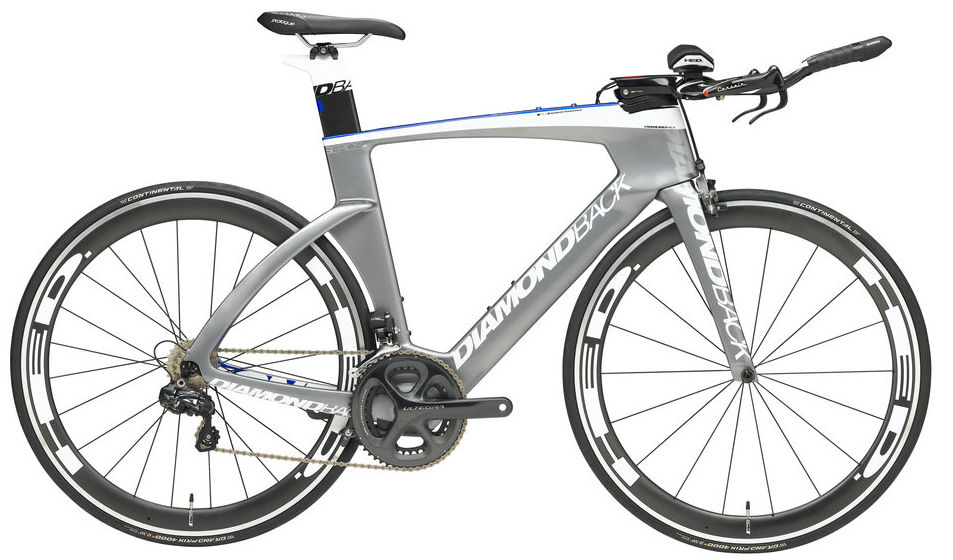

2015 Diamondback Serios F geometry
Full frame geometry for the 2015 Diamondback Serios F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 501 | 395 | 77 | 72.5 | 103 | 492 | 514 | 742 | 65 | 583 | 400 | 974 | 45 | 58 |
| 54 | 532 | 408 | 77 | 72.5 | 125 | 511 | 546 | 763 | 75 | 604 | 400 | 992 | 45 | 58 |
| 56 | 552 | 421 | 77 | 72.5 | 146 | 528 | 566 | 784 | 75 | 622 | 400 | 1011 | 45 | 58 |
| 58 | 572 | 434 | 77 | 72.5 | 167 | 545 | 587 | 805 | 75 | 642 | 400 | 1030 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
