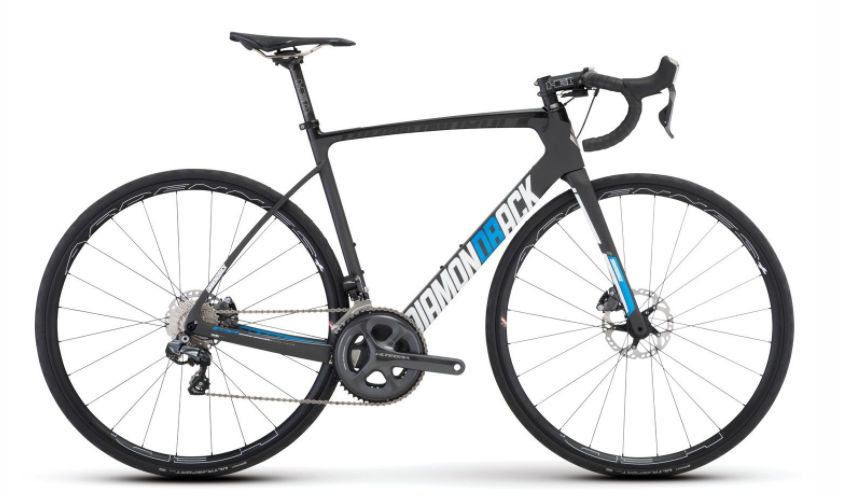

2017 Diamondback Podium Vitesse geometry
Full frame geometry for the 2017 Diamondback Podium Vitesse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/52 | 533 | 376 | 74 | 72.3 | 130 | 529 | 523 | 779 | 69 | 408 | 973 | 45 |
| M/54 | 542 | 380 | 73.3 | 72.8 | 140 | 543 | 534 | 791 | 67 | 408 | 977 | 45 |
| L/56 | 557 | 387 | 73 | 73 | 155 | 557 | 550 | 808 | 67 | 408 | 986 | 45 |
| XL/58 | 578 | 398 | 73 | 73 | 180 | 575 | 572 | 823 | 64 | 408 | 1005 | 45 |
| XXL/60 | 598 | 402 | 72.5 | 73 | 200 | 590 | 594 | 852 | 64 | 408 | 1015 | 45 |
All measurements in millimetres unless marked (°) for angles.
