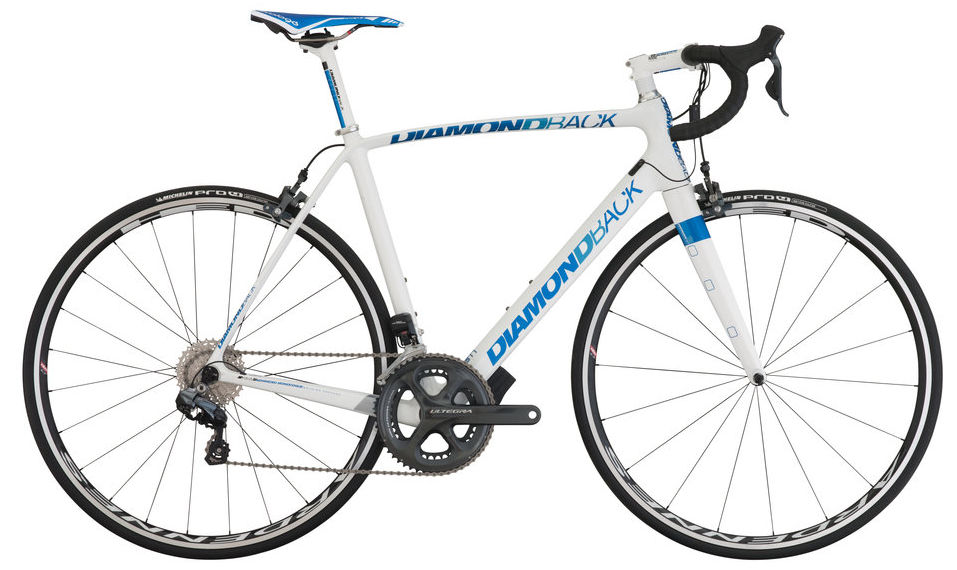

2013 Diamondback Podium MK I geometry
Full frame geometry for the 2013 Diamondback Podium MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 518 | 372 | 75.2 | 72 | 115 | 515 | 470 | 729 | 73 | 405 | 45 |
| S/52 | 539 | 376 | 74 | 72.3 | 135 | 530 | 490 | 755 | 73 | 405 | 45 |
| M/54 | 552 | 380 | 73.3 | 72.8 | 150 | 545 | 510 | 766 | 70 | 405 | 45 |
| L/56 | 567 | 387 | 73 | 73 | 165 | 560 | 530 | 786 | 70 | 405 | 45 |
| XL/58 | 579 | 398 | 73 | 73 | 180 | 575 | 550 | 802 | 68 | 405 | 45 |
| XXL/60 | 603 | 402 | 72.5 | 73 | 205 | 590 | 570 | 828 | 68 | 405 | 45 |
All measurements in millimetres unless marked (°) for angles.
