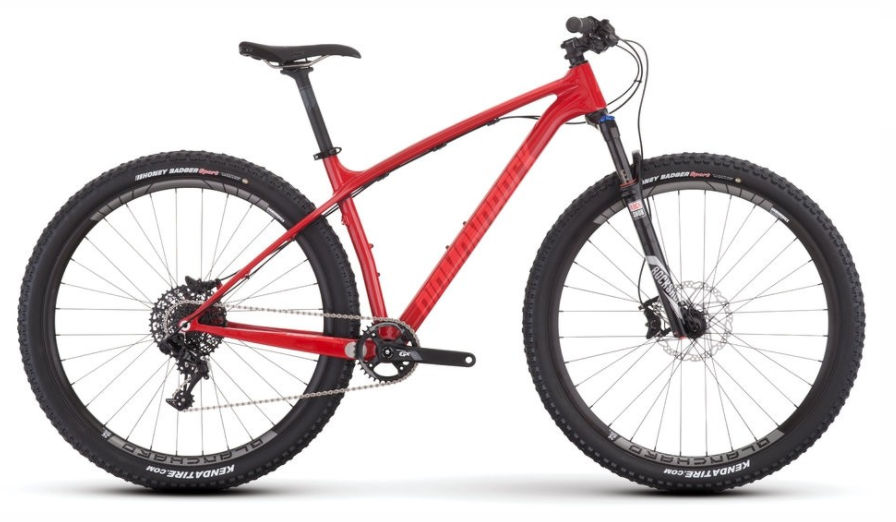

2017 Diamondback Overdrive 29 Carbon geometry
Full frame geometry for the 2017 Diamondback Overdrive 29 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 397 | 71 | 71 | 95 | 580 | 400 | 775 | 65 | 435 | 1058 | 45 |
| M | 610 | 422 | 71 | 71 | 105 | 609 | 450 | 785 | 65 | 435 | 1087 | 45 |
| L | 624 | 439 | 71 | 71 | 120 | 630 | 500 | 815 | 65 | 435 | 1109 | 45 |
| XL | 638 | 453 | 71 | 71 | 135 | 648 | 550 | 833 | 65 | 435 | 1128 | 45 |
All measurements in millimetres unless marked (°) for angles.
