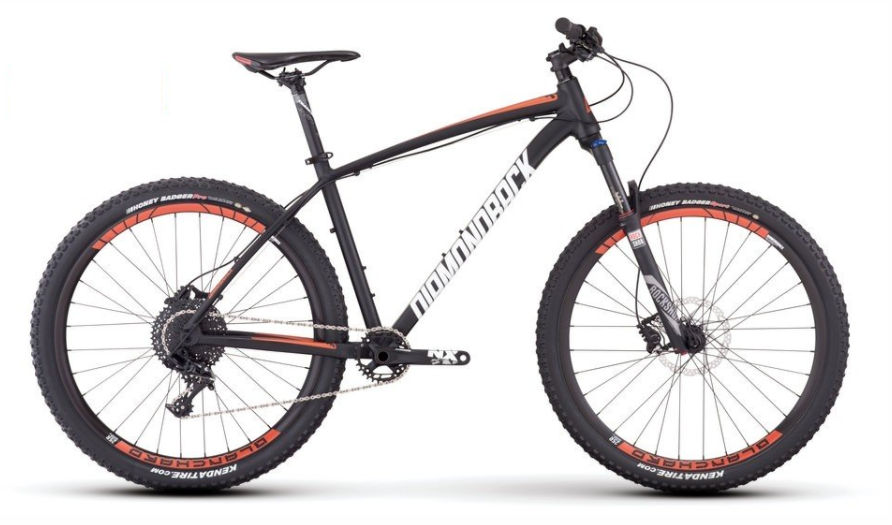

2017 Diamondback Overdrive 27.5 geometry
Full frame geometry for the 2017 Diamondback Overdrive 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 398 | 73 | 68 | 105 | 574 | 410 | 758 | 44 | 425 | 1081 | 44 |
| M | 593 | 418 | 73 | 68 | 125 | 600 | 460 | 796 | 44 | 425 | 1109 | 44 |
| L | 611 | 433 | 73 | 68 | 145 | 620 | 510 | 831 | 44 | 425 | 1130 | 44 |
| XL | 630 | 447 | 73 | 68 | 165 | 640 | 560 | 867 | 44 | 425 | 1153 | 44 |
All measurements in millimetres unless marked (°) for angles.
