2015 Diamondback · MD

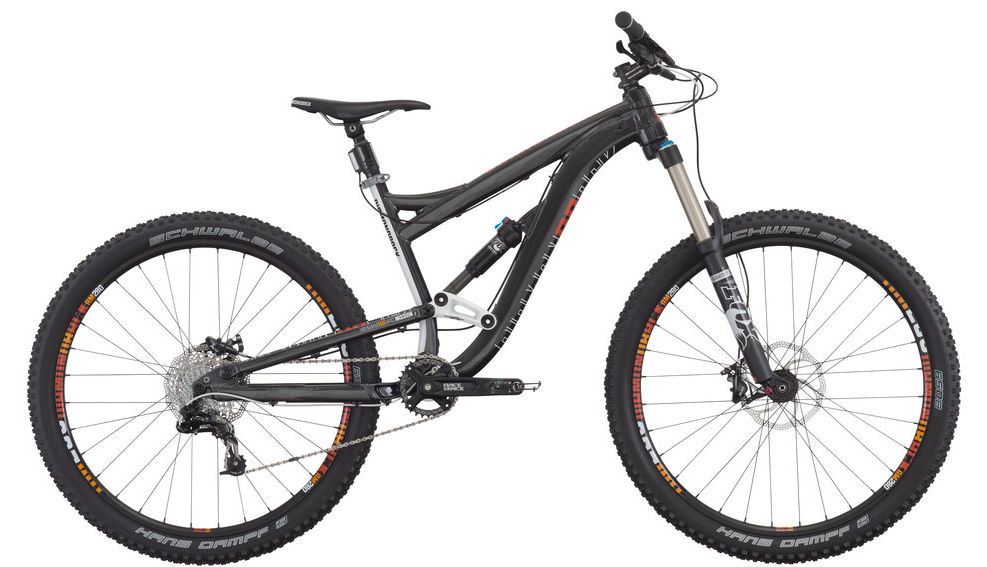

2015 Diamondback Mission geometry
Full frame geometry for the 2015 Diamondback Mission, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 589 | 404 | 73 | 66.5 | 105 | 584 | 432 | 775 | 2 | 451 | 44 |
| S/15.5 | 589 | 380 | 73 | 66.5 | 105 | 559 | 381 | 762 | 2 | 451 | 44 |
| L/19 | 604 | 416 | 73 | 66.5 | 120 | 610 | 483 | 800 | 2 | 451 | 44 |
| XL/21 | 622 | 430 | 73 | 66.5 | 140 | 635 | 533 | 813 | 2 | 451 | 44 |
All measurements in millimetres unless marked (°) for angles.
