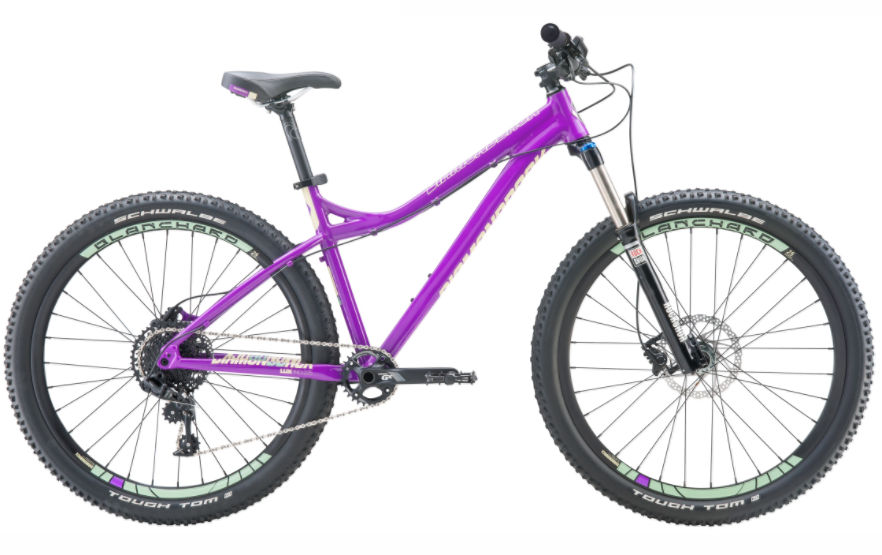

2017 Diamondback Lux geometry
Full frame geometry for the 2017 Diamondback Lux, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 526 | 393 | 73.2 | 68 | 95 | 555 | 380 | 639 | 44 | 430 | 1070 | 46 |
| M | 546 | 416 | 73.3 | 68 | 105 | 580 | 430 | 647 | 44 | 430 | 1096 | 46 |
| L | 555 | 427 | 73.4 | 68 | 115 | 595 | 480 | 664 | 44 | 430 | 1112 | 46 |
All measurements in millimetres unless marked (°) for angles.
