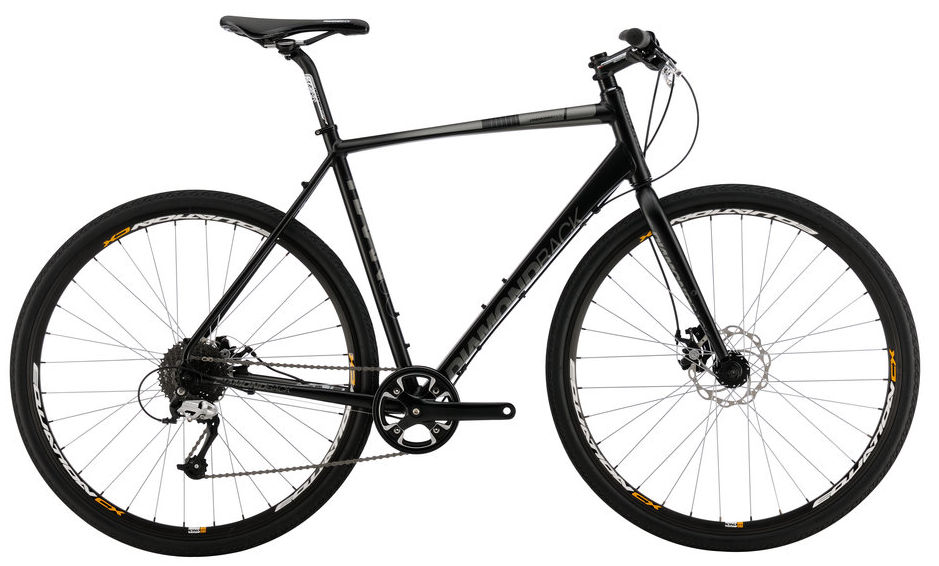

2015 Diamondback Haanjo Metro geometry
Full frame geometry for the 2015 Diamondback Haanjo Metro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 546 | 376 | 74.5 | 69 | 130 | 525 | 500 | 751 | 70 | 430 | 45 |
| M/53 | 573 | 375 | 73.5 | 70 | 155 | 540 | 530 | 781 | 70 | 430 | 45 |
| L/56 | 593 | 378 | 72.5 | 71 | 175 | 560 | 560 | 807 | 70 | 430 | 45 |
| XL/59 | 620 | 390 | 72 | 72 | 200 | 580 | 590 | 836 | 70 | 430 | 45 |
All measurements in millimetres unless marked (°) for angles.
