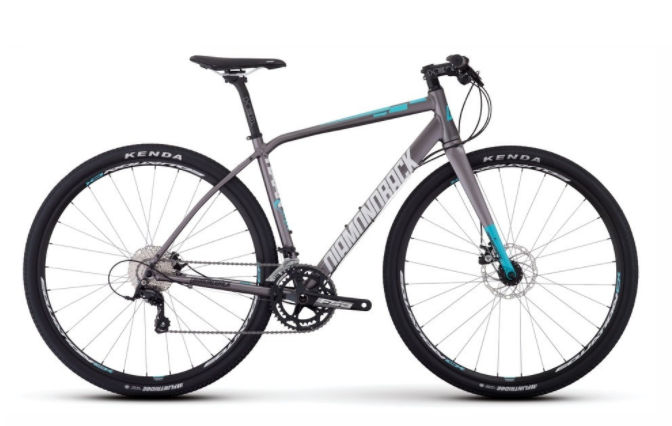

2017 Diamondback Haanjenn geometry
Full frame geometry for the 2017 Diamondback Haanjenn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 543 | 379 | 76 | 70 | 120 | 515 | 410 | 724 | 70 | 430 | 1029 | 50 |
| S | 556 | 370 | 74.5 | 71 | 130 | 525 | 440 | 748 | 70 | 430 | 1015 | 50 |
| M | 572 | 370 | 74 | 71.5 | 145 | 535 | 470 | 774 | 70 | 430 | 1016 | 50 |
| L | 588 | 376 | 73.5 | 72 | 160 | 550 | 500 | 800 | 70 | 430 | 1021 | 50 |
All measurements in millimetres unless marked (°) for angles.
