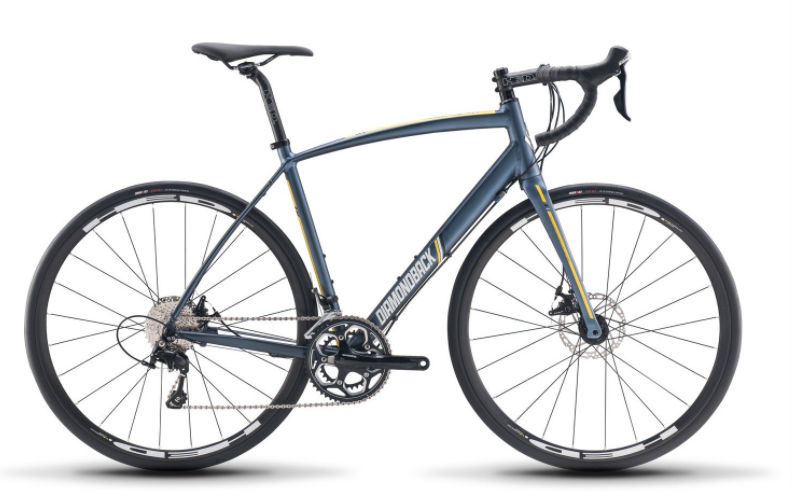

2017 Diamondback Century Disc MK II geometry
Full frame geometry for the 2017 Diamondback Century Disc MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 376 | 75 | 71.5 | 125 | 520 | 470 | 745 | 72 | 415 | 990 | 48 |
| S | 558 | 375 | 74 | 72 | 145 | 535 | 490 | 767 | 72 | 415 | 991 | 48 |
| M | 572 | 372 | 73.2 | 72.8 | 160 | 545 | 510 | 788 | 70 | 415 | 987 | 48 |
| L | 591 | 378 | 73 | 73 | 180 | 560 | 530 | 807 | 70 | 415 | 997 | 48 |
| XL | 609 | 388 | 73 | 73 | 200 | 575 | 550 | 830 | 68 | 415 | 1013 | 48 |
All measurements in millimetres unless marked (°) for angles.
