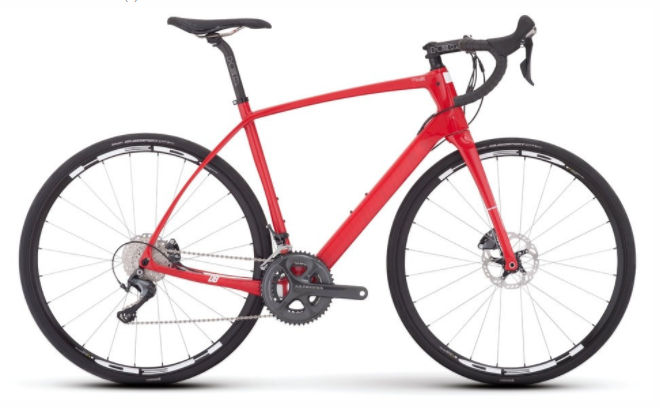

2017 Diamondback Century Carbon MK II geometry
Full frame geometry for the 2017 Diamondback Century Carbon MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/52 | 553 | 371 | 74 | 72.5 | 135 | 530 | 490 | 756 | 72 | 415 | 981 | 48 |
| M/54 | 566 | 375 | 73.2 | 72.8 | 150 | 545 | 510 | 778 | 70 | 415 | 987 | 48 |
| L/56 | 595 | 378 | 73 | 73 | 180 | 560 | 530 | 802 | 70 | 415 | 997 | 48 |
| XL/58 | 612 | 388 | 73 | 73 | 200 | 575 | 550 | 825 | 68 | 415 | 1013 | 48 |
| XXL/60 | 631 | 391 | 72.5 | 73 | 220 | 590 | 570 | 843 | 68 | 415 | 1022 | 48 |
All measurements in millimetres unless marked (°) for angles.
