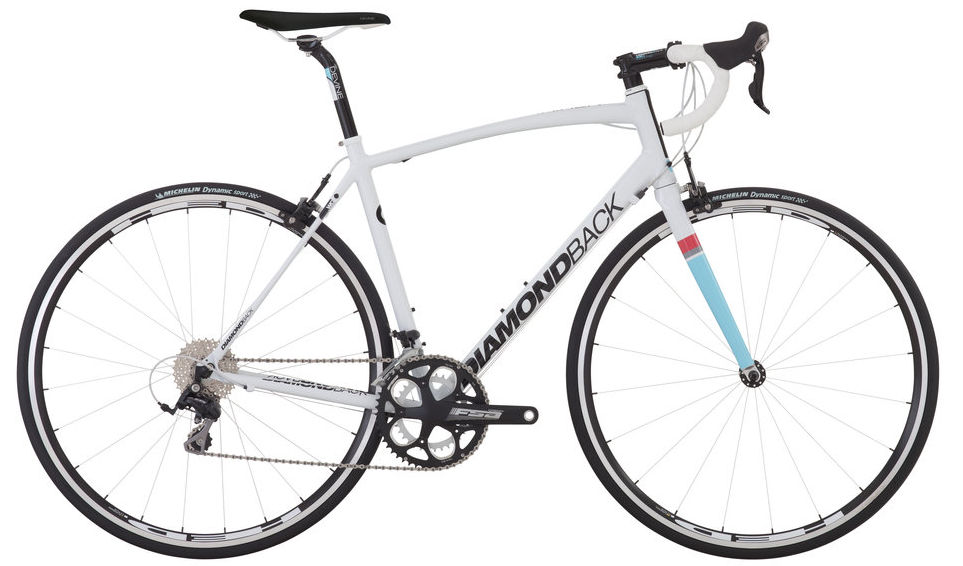

2015 Diamondback Airen Sport geometry
Full frame geometry for the 2015 Diamondback Airen Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/48 | 501 | 342 | 76 | 70.5 | 105 | 495 | 420 | 685 | 72 | 410 | 50 |
| XS/50 | 526 | 368 | 75 | 71 | 130 | 510 | 450 | 702 | 72 | 410 | 50 |
| S/52 | 549 | 370 | 74.5 | 72 | 150 | 525 | 480 | 723 | 72 | 410 | 50 |
| M/54 | 573 | 372 | 73.5 | 72 | 175 | 540 | 510 | 765 | 72 | 410 | 50 |
| L/56 | 591 | 374 | 73 | 72.5 | 195 | 550 | 540 | 777 | 72 | 410 | 50 |
All measurements in millimetres unless marked (°) for angles.
