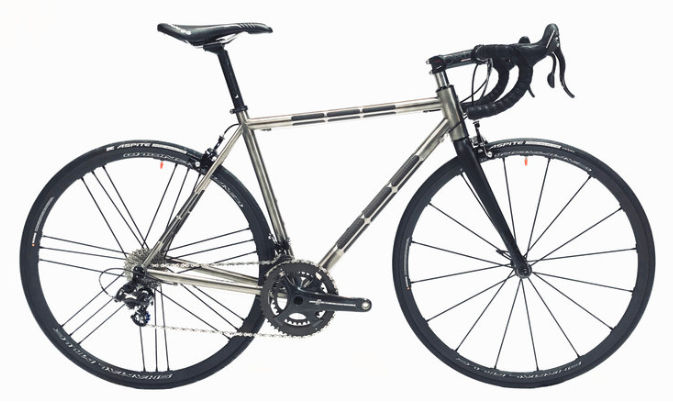

2018 Dean Vader Exogrid geometry
Full frame geometry for the 2018 Dean Vader Exogrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 | 543 | 389 | 73.5 | 72.5 | 140 | 550 | 490 | 791 | 70 | 585 | 408 | 983 | 43 | 61 |
| 56 | 554 | 401 | 73 | 73 | 150 | 570 | 520 | 813 | 70 | 595 | 410 | 995 | 43 | 58 |
| 58 | 573 | 410 | 73 | 73.5 | 170 | 585 | 560 | 845 | 68 | 606 | 410 | 1006 | 43 | 55 |
| 60 | 594 | 408 | 72.5 | 74 | 190 | 595 | 580 | 867 | 68 | 605 | 412 | 1007 | 43 | 52 |
| 62 | 612 | 422 | 72.5 | 74 | 210 | 615 | 600 | 888 | 67 | 624 | 412 | 1027 | 43 | 52 |
| 64 | 622 | 418 | 72 | 74 | 220 | 620 | 620 | 904 | 67 | 623 | 415 | 1029 | 43 | 52 |
All measurements in millimetres unless marked (°) for angles.
