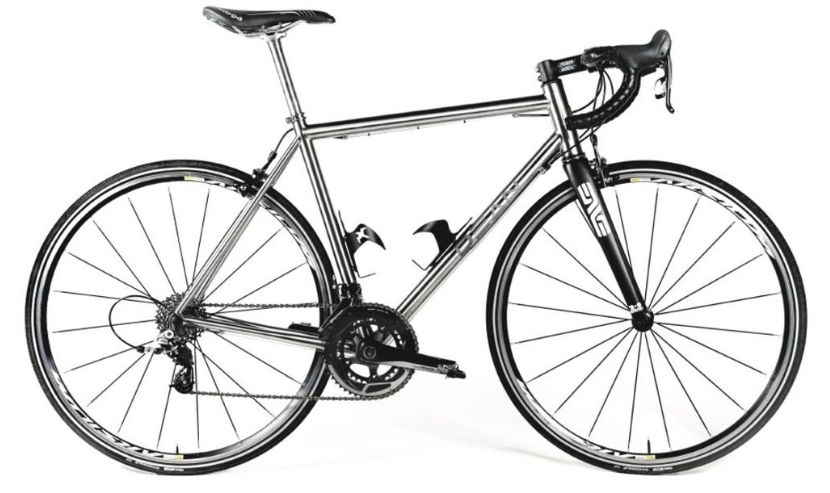

2015 Dean El Vado geometry
Full frame geometry for the 2015 Dean El Vado, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 370 | 73.5 | 71.5 | 130 | 530 | 490 | 70 | 574 | 406 | 970 | 43 |
| M | 554 | 381 | 73.5 | 72.5 | 140 | 545 | 510 | 70 | 580 | 410 | 980 | 43 |
| L | 573 | 389 | 72.5 | 73 | 160 | 570 | 530 | 68 | 590 | 412 | 993 | 43 |
| XL | 594 | 398 | 72.5 | 73.5 | 180 | 585 | 560 | 68 | 600 | 412 | 1002 | 43 |
All measurements in millimetres unless marked (°) for angles.
