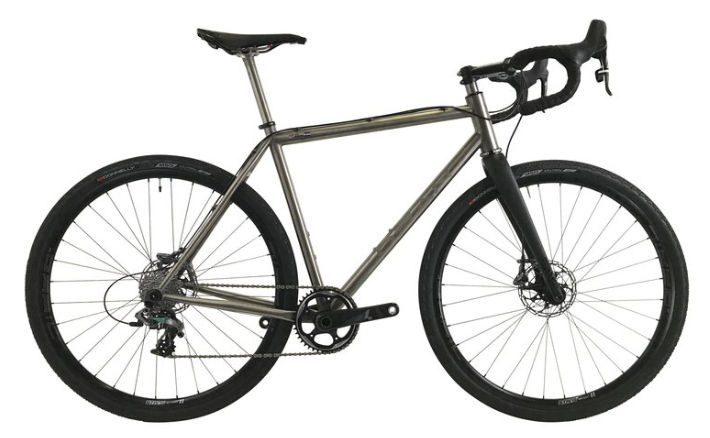

2018 Dean Antero CX MKII geometry
Full frame geometry for the 2018 Dean Antero CX MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 540 | 370 | 73.5 | 71 | 100 | 530 | 490 | 72 | 588 | 438 | 1009 | 49 |
| M | 561 | 379 | 73 | 71.5 | 130 | 545 | 510 | 72 | 599 | 438 | 1020 | 49 |
| L | 580 | 388 | 73 | 71.5 | 150 | 565 | 530 | 72 | 614 | 438 | 1035 | 49 |
| XL | 601 | 391 | 72.5 | 71.5 | 170 | 575 | 550 | 72 | 619 | 438 | 1041 | 49 |
All measurements in millimetres unless marked (°) for angles.
