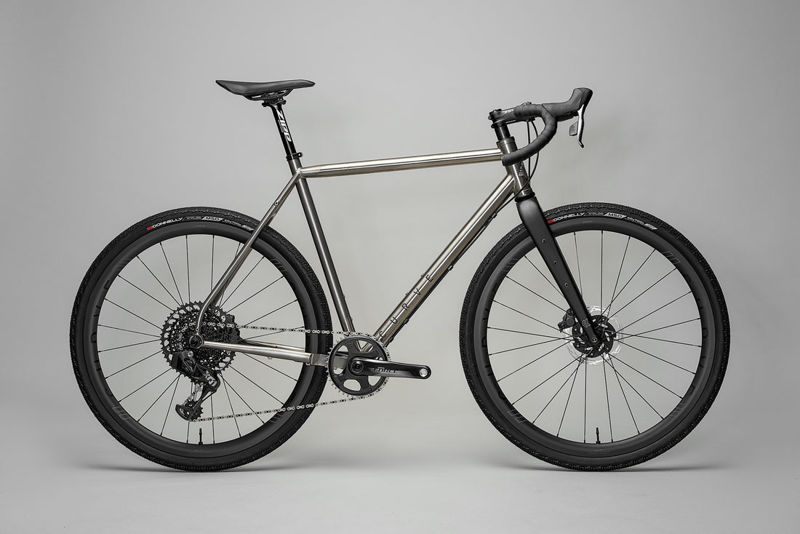

2024 Curve GXR (aka Kevin) geometry
Full frame geometry for the 2024 Curve GXR (aka Kevin), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 547 | 362 | 73 | 71 | 110 | 529 | 460 | 743 | 72 | 584 | 432 | 1005 |
| XS | 550 | 373 | 73 | 71 | 115 | 541 | 500 | 765 | 70 | 596 | 432 | 1018 |
| SM | 561 | 383 | 73 | 71.5 | 125 | 554 | 530 | 784 | 70 | 605 | 432 | 1027 |
| MD | 572 | 389 | 73 | 71.5 | 136 | 564 | 560 | 804 | 70 | 615 | 432 | 1037 |
| LG | 585 | 396 | 73 | 72 | 150 | 574 | 580 | 822 | 68 | 621 | 432 | 1044 |
| XL | 604 | 405 | 73 | 72 | 170 | 589 | 595 | 839 | 68 | 636 | 432 | 1059 |
| XXL | 642 | 408 | 73 | 72 | 210 | 604 | 615 | 867 | 68 | 652 | 435 | 1078 |
All measurements in millimetres unless marked (°) for angles.
