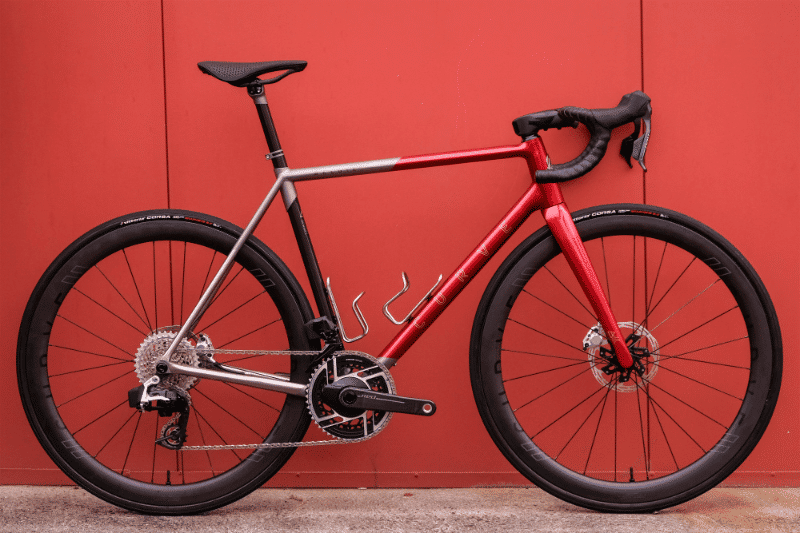

2026 Curve AIR Belgie geometry

Name: 2026 Curve AIR Belgie
Brand: Curve

Full frame geometry for the 2026 Curve AIR Belgie, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	516	366	74	71.5	110	514	485	732	75	563	410	962	45
50	522	374	74	72	115	524	505	745	75	569	410	968	45
52	528	378	73.5	72.5	120	534	525	757	75	571	410	969	45
53	535	386	73.5	72.5	130	544	535	768	72	581	410	981	45
54	545	393	73.5	72.5	140	554	545	777	72	592	412	993	45
55	554	400	73.5	72.5	150	564	555	787	72	602	412	1003	45
56	564	408	73.5	72.5	160	574	570	799	72	612	412	1013	45
58	592	414	73	73	190	595	590	824	70	623	415	1028	45
61	630	422	73	73	230	615	625	860	70	642	415	1048	45

All measurements in millimetres unless marked (°) for angles.
