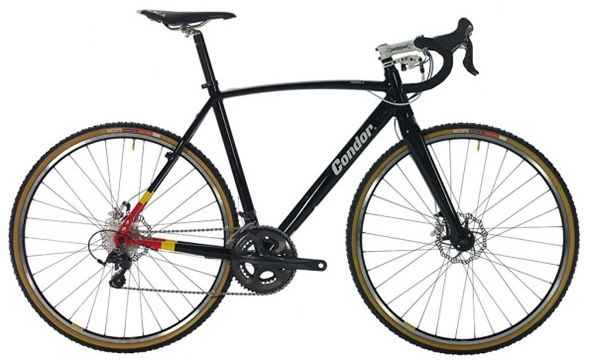

2015 Condor Terra-X geometry
Full frame geometry for the 2015 Condor Terra-X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 513 | 358 | 75 | 71 | 100 | 460 | 57 | 425 | 4.5 | 397.4 |
| 49 | 516 | 367 | 74.5 | 71 | 110 | 490 | 57 | 425 | 4.5 | 397.4 |
| 52 | 525 | 374 | 74 | 71 | 120 | 520 | 57 | 425 | 4.5 | 397.4 |
| 55 | 554 | 381 | 73.5 | 72 | 140 | 550 | 57 | 425 | 4.5 | 397.4 |
| 58 | 568 | 392 | 73.5 | 72.5 | 160 | 580 | 57 | 425 | 4.5 | 397.4 |
| 61 | 599 | 397 | 73 | 73 | 190 | 610 | 57 | 425 | 4.5 | 397.4 |
All measurements in millimetres unless marked (°) for angles.
