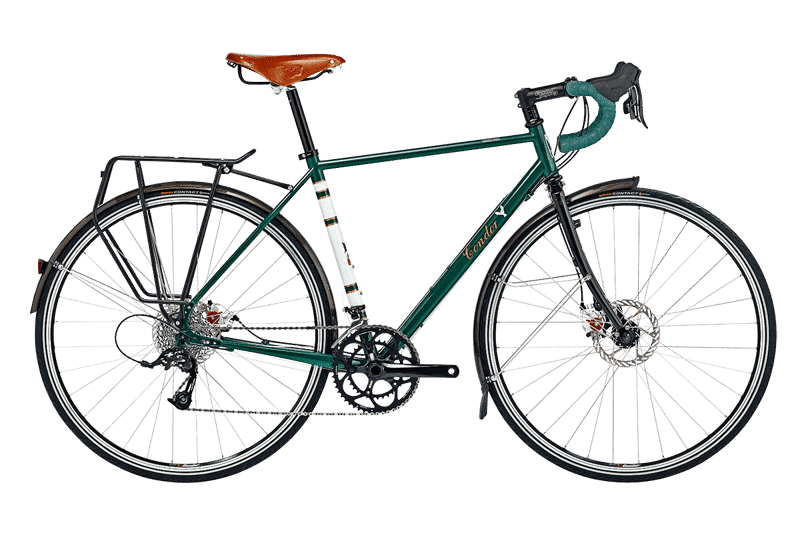

2023 Condor Heritage Disc geometry
Full frame geometry for the 2023 Condor Heritage Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 525 | 362 | 74 | 71.5 | 100 | 513 | 460 | 700 | 445 | 480 |
| 49 | 530 | 361 | 73.5 | 71.5 | 105 | 518 | 490 | 700 | 445 | 480 |
| 52 | 549 | 369 | 73 | 71.5 | 125 | 537 | 520 | 700 | 445 | 480 |
| 55 | 578 | 378 | 73 | 71.5 | 155 | 555 | 550 | 700 | 445 | 480 |
| 58 | 606 | 385 | 73 | 71.5 | 185 | 570 | 580 | 700 | 445 | 480 |
| 61 | 636 | 380 | 72.5 | 71.5 | 215 | 580 | 610 | 700 | 450 | 480 |
| 64 | 653 | 384 | 72.5 | 71.5 | 235 | 590 | 640 | 700 | 450 | 480 |
All measurements in millimetres unless marked (°) for angles.
