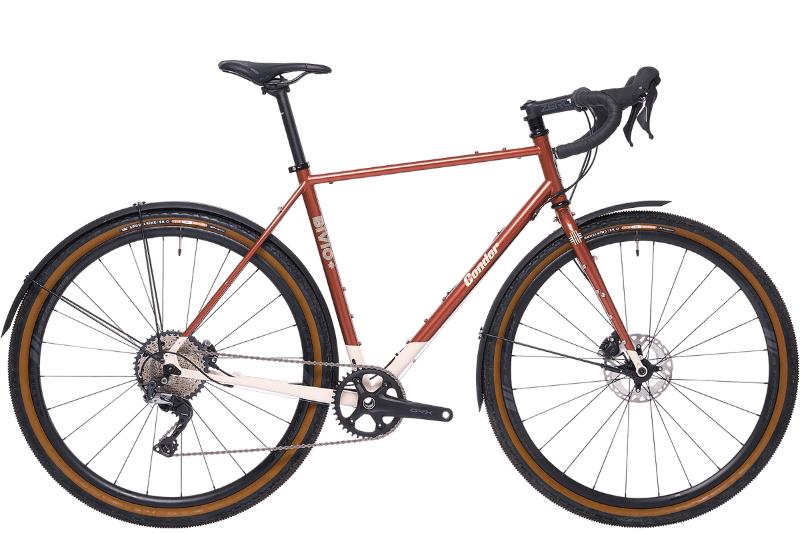

2026 Condor Bivio+ geometry
Full frame geometry for the 2026 Condor Bivio+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 46 | 534 | 360 | 74 | 71 | 100 | 513 | 460 | 70 | 445 |
| 49 | 536 | 359 | 73.5 | 71 | 105 | 518 | 490 | 70 | 445 |
| 52 | 556 | 367 | 73 | 71.5 | 125 | 537 | 520 | 70 | 445 |
| 55 | 588 | 375 | 73 | 71.5 | 155 | 555 | 550 | 70 | 445 |
| 58 | 615 | 382 | 73 | 71.5 | 185 | 570 | 580 | 70 | 445 |
| 61 | 642 | 378 | 72.5 | 71.5 | 215 | 580 | 610 | 70 | 450 |
All measurements in millimetres unless marked (°) for angles.
