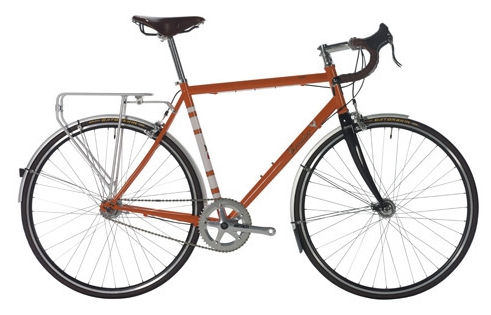

2015 Condor Tempo geometry
Full frame geometry for the 2015 Condor Tempo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 518 | 374 | 75 | 71 | 110 | 460 | 70 | 425 | 4.5 | 378 |
| 49 | 529 | 366 | 74 | 71.5 | 120 | 490 | 70 | 425 | 4.5 | 378 |
| 52 | 554 | 378 | 74 | 72 | 145 | 520 | 70 | 425 | 4.5 | 378 |
| 55 | 588 | 381 | 73.5 | 73.5 | 175 | 550 | 70 | 425 | 4.5 | 378 |
| 58 | 617 | 381 | 73 | 74 | 205 | 580 | 70 | 430 | 4.5 | 378 |
| 61 | 646 | 376 | 72.5 | 74 | 235 | 610 | 70 | 430 | 4.5 | 378 |
| 64 | 665 | 380 | 72.5 | 74 | 255 | 640 | 70 | 410 | 4.5 | 378 |
All measurements in millimetres unless marked (°) for angles.
