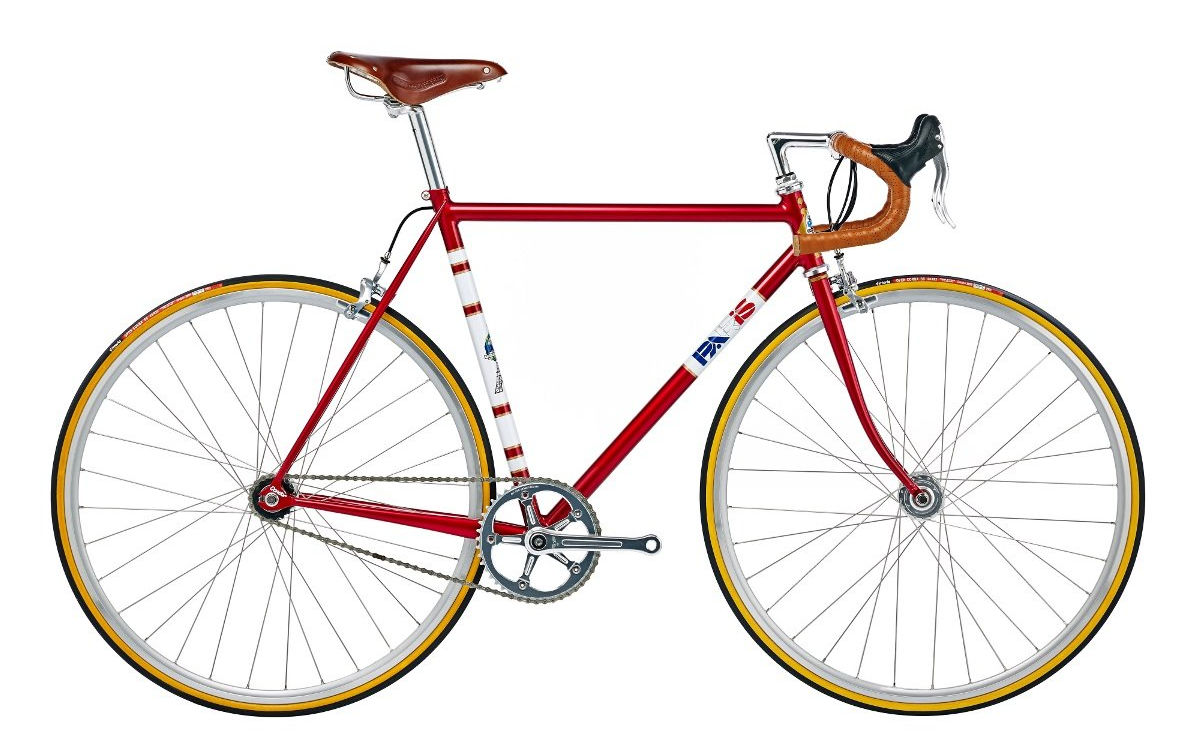

2017 Condor Paris Path geometry
Full frame geometry for the 2017 Condor Paris Path, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 471 | 389 | 75 | 71.5 | 80 | 490 | 70 | 405 |
| 52 | 487 | 390 | 75 | 72 | 95 | 520 | 70 | 405 |
| 55 | 514 | 383 | 74 | 73 | 120 | 550 | 70 | 405 |
| 58 | 538 | 396 | 73.5 | 73 | 145 | 580 | 70 | 408 |
| 61 | 567 | 402 | 73 | 73 | 175 | 610 | 70 | 410 |
| 46 | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
