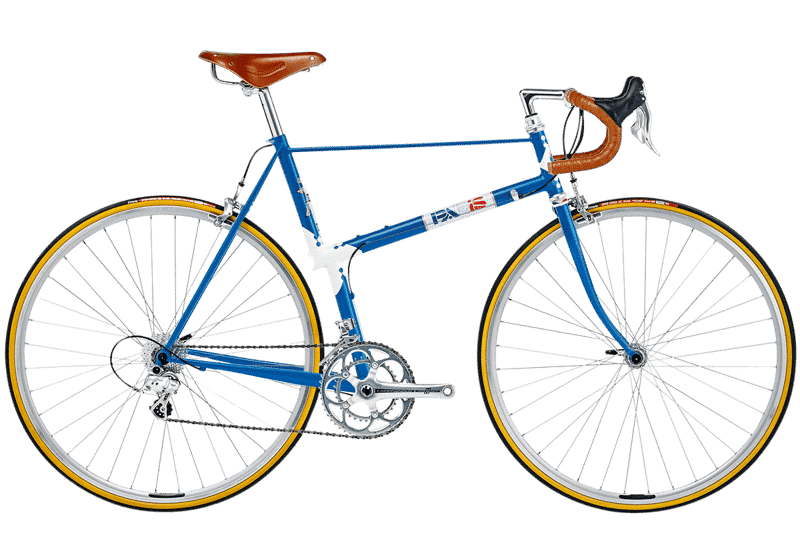

2023 Condor Paris Galibier geometry
Full frame geometry for the 2023 Condor Paris Galibier, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 468 | 381 | 74 | 79 | 75 | 515 | 490 | 445 |
| 55 | 504 | 381 | 72 | 70 | 110 | 535 | 550 | 445 |
| 58 | 539 | 381 | 72 | 72 | 140 | 555 | 580 | 445 |
| 61 | 563 | 381 | 72 | 72 | 165 | 575 | 610 | 445 |
| 52 | 585 | 381 | 73 | 70 | 90 | 520 | 520 | 445 |
All measurements in millimetres unless marked (°) for angles.
