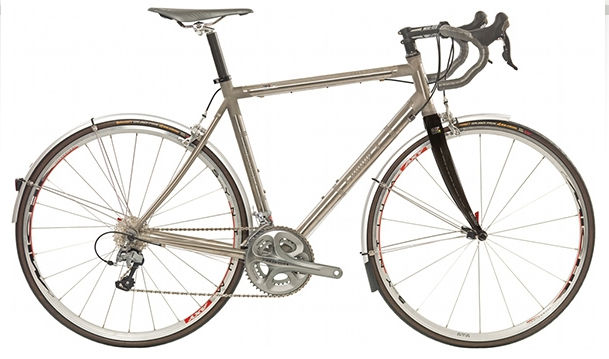

2015 Condor Gran Fondo geometry
Full frame geometry for the 2015 Condor Gran Fondo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 46 | 492 | 379 | 75 | 71 | 110 | 513 | 460 | 70 | 405 |
| 49 | 508 | 372 | 74 | 71.5 | 120 | 518 | 490 | 70 | 405 |
| 52 | 534 | 384 | 74 | 72 | 145 | 537 | 520 | 70 | 405 |
| 55 | 570 | 386 | 73.5 | 73.5 | 175 | 555 | 550 | 70 | 405 |
| 58 | 595 | 386 | 73 | 74 | 205 | 570 | 580 | 70 | 408 |
| 61 | 630 | 380 | 72.5 | 74 | 235 | 580 | 610 | 70 | 410 |
All measurements in millimetres unless marked (°) for angles.
