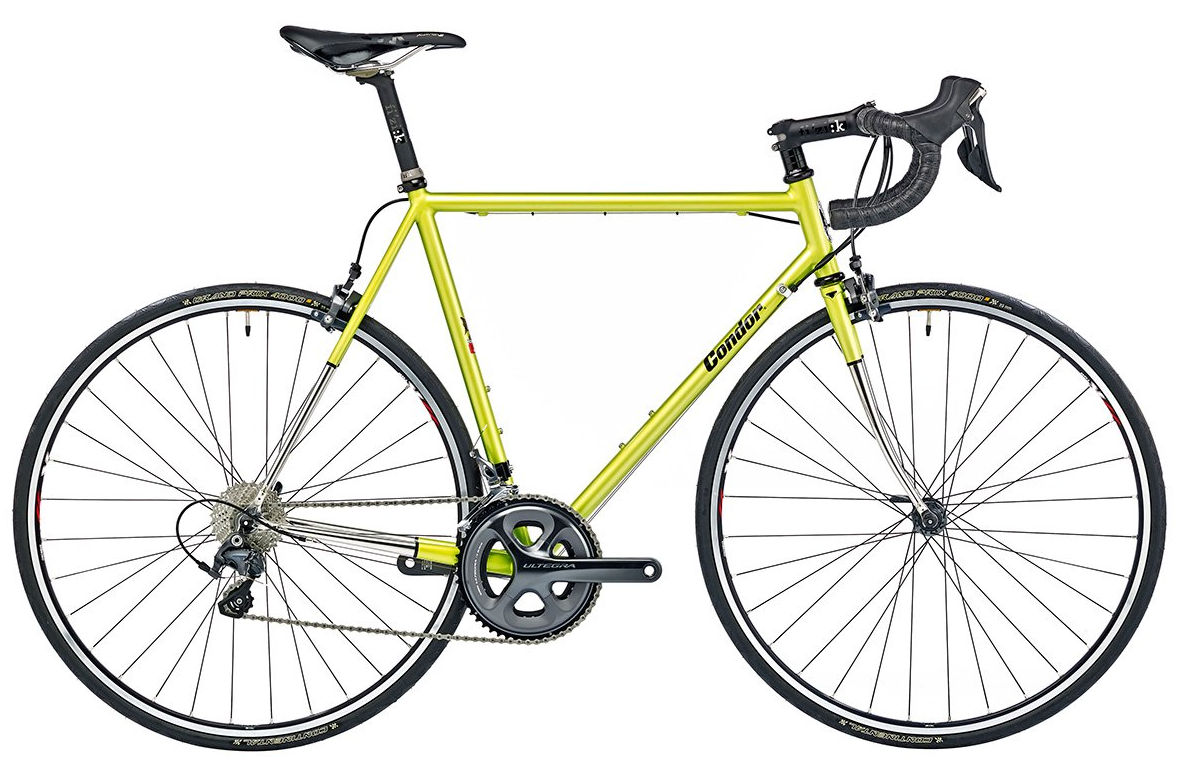

2017 Condor Classico Stainless MKI geometry
Full frame geometry for the 2017 Condor Classico Stainless MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 485 | 385 | 75 | 71.5 | 85 | 490 | 70 | 405 |
| 52 | 510 | 383 | 75 | 72 | 110 | 520 | 70 | 405 |
| 55 | 537 | 381 | 74 | 73 | 135 | 550 | 70 | 405 |
| 58 | 557 | 406 | 73.5 | 73 | 155 | 580 | 70 | 408 |
| 61 | 585 | 402 | 73 | 73 | 185 | 610 | 70 | 410 |
| 46 | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
