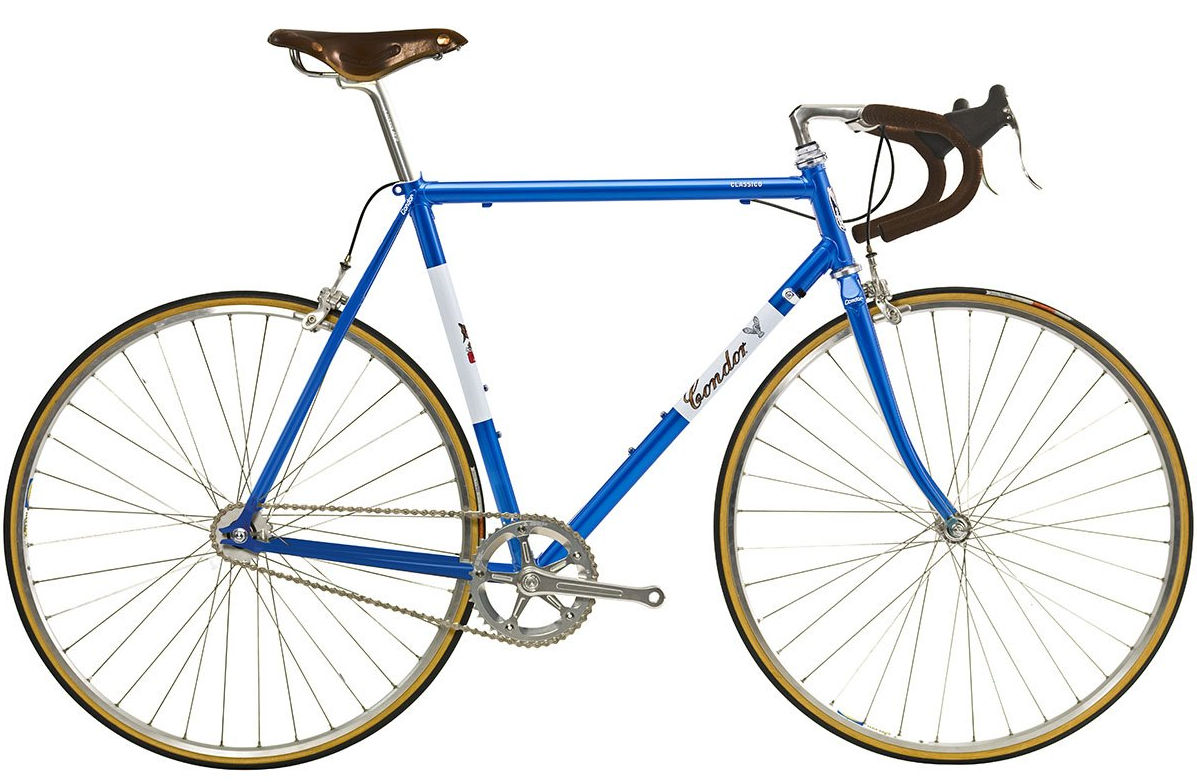

2017 Condor Classico Pista geometry
Full frame geometry for the 2017 Condor Classico Pista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 475 | 388 | 75 | 71.5 | 85 | 490 | 60 | 405 |
| 52 | 504 | 375 | 75 | 72 | 110 | 520 | 60 | 405 |
| 55 | 527 | 379 | 74 | 73 | 135 | 550 | 60 | 405 |
| 58 | 547 | 393 | 73.5 | 73 | 155 | 580 | 60 | 408 |
| 61 | 575 | 399 | 73 | 73 | 185 | 610 | 60 | 410 |
| 46 | — | — | — | — | — | — | — | — |
All measurements in millimetres unless marked (°) for angles.
