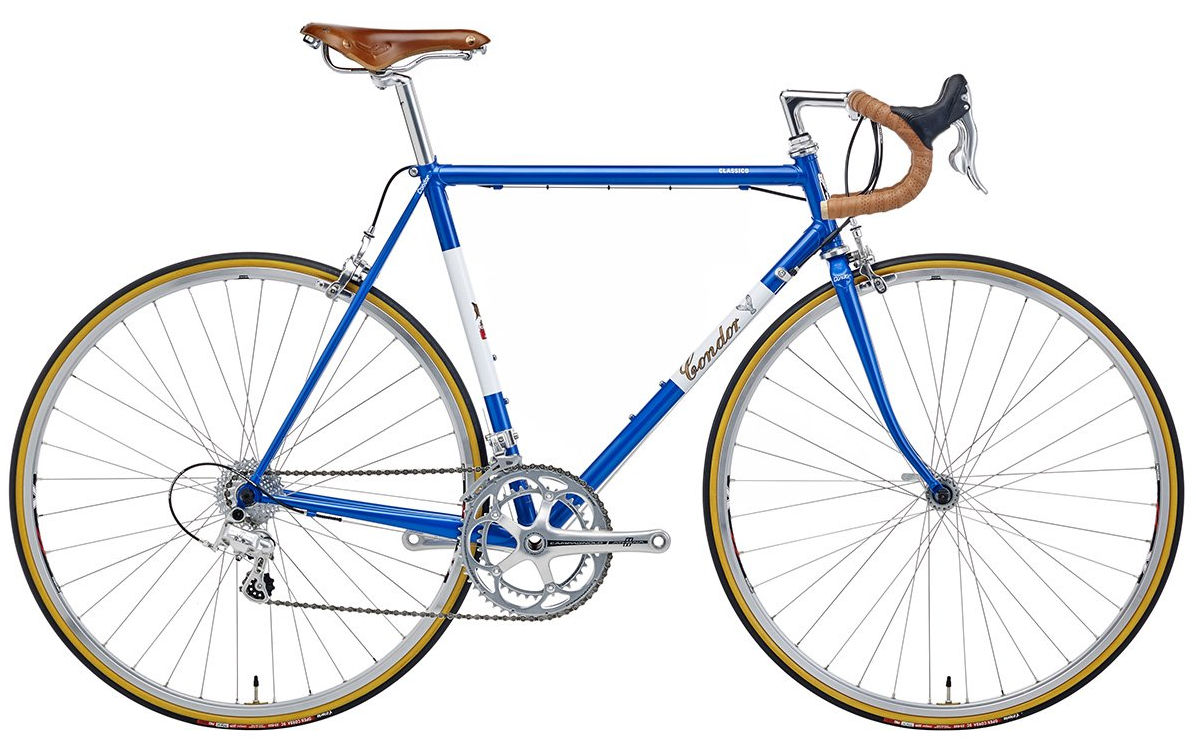

2017 Condor Classico MKI geometry
Full frame geometry for the 2017 Condor Classico MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 49 | 485 | 380 | 75 | 71.5 | 85 | 515 | 490 | 65 | 405 |
| 52 | 510 | 384 | 75 | 72 | 110 | 520 | 520 | 65 | 405 |
| 55 | 540 | 380 | 74 | 73 | 135 | 535 | 550 | 65 | 405 |
| 58 | 570 | 381 | 73.5 | 73 | 155 | 555 | 580 | 65 | 408 |
| 61 | 595 | 390 | 73 | 73 | 185 | 575 | 610 | 65 | 410 |
All measurements in millimetres unless marked (°) for angles.
