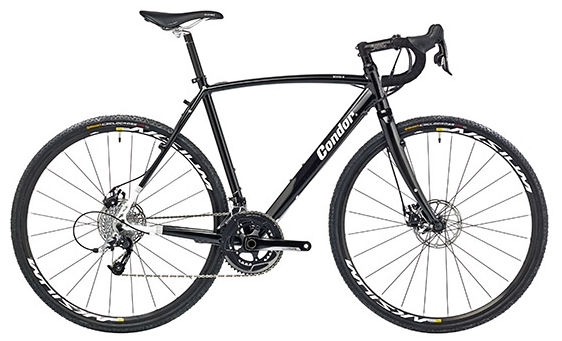

2015 Condor Bivio-X geometry
Full frame geometry for the 2015 Condor Bivio-X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 46 | 492 | 382 | 75 | 71 | 100 | 495 | 460 | 57 | 425 |
| 49 | 505 | 376 | 74.5 | 71 | 110 | 510 | 490 | 57 | 425 |
| 52 | 516 | 376 | 74 | 71 | 120 | 525 | 520 | 57 | 425 |
| 55 | 540 | 385 | 73.5 | 72 | 140 | 545 | 550 | 57 | 425 |
| 58 | 565 | 392 | 73.5 | 72.5 | 160 | 560 | 580 | 57 | 425 |
| 61 | 600 | 396 | 73 | 73 | 190 | 580 | 610 | 57 | 425 |
All measurements in millimetres unless marked (°) for angles.
