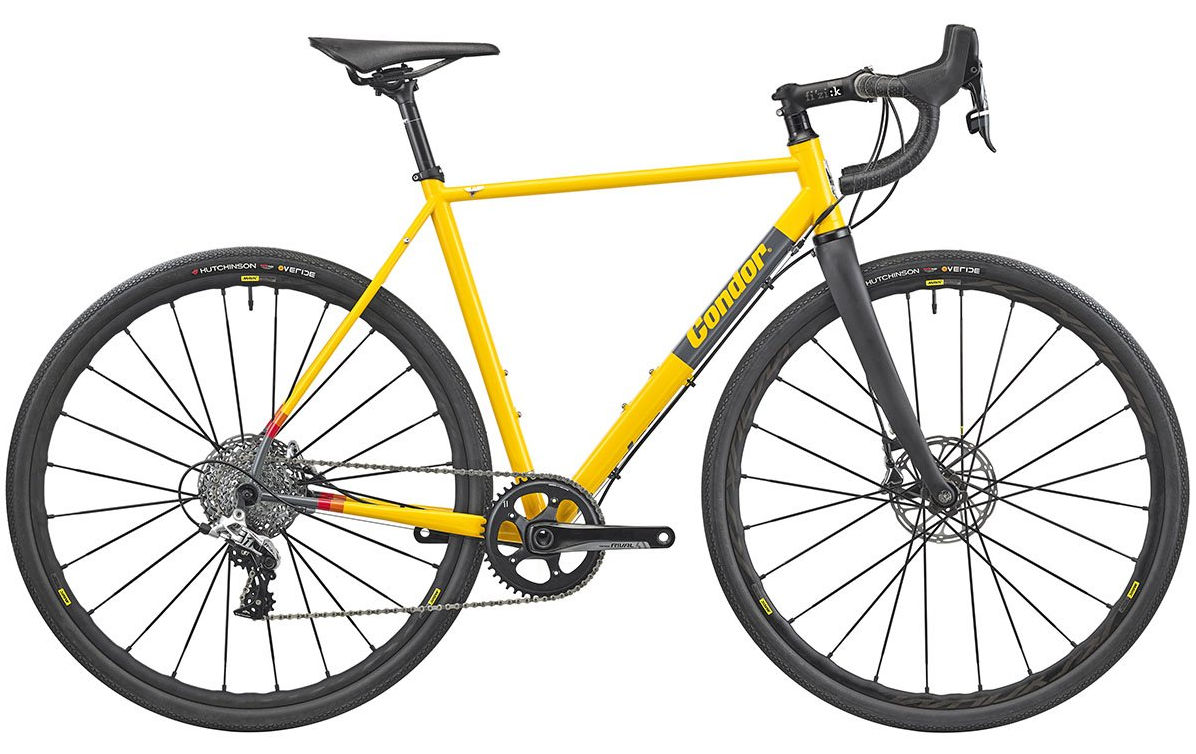

2017 Condor Bivio Gravel geometry
Full frame geometry for the 2017 Condor Bivio Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 516 | 365 | 74 | 71 | 90 | 460 | 70 | 430 | 5 | 398 |
| 49 | 521 | 364 | 73.5 | 71 | 95 | 490 | 70 | 430 | 5 | 398 |
| 52 | 534 | 374 | 73 | 72 | 105 | 520 | 70 | 430 | 5 | 398 |
| 55 | 564 | 381 | 73 | 72.5 | 135 | 550 | 70 | 430 | 5 | 398 |
| 58 | 593 | 392 | 73 | 72.5 | 165 | 580 | 70 | 430 | 5 | 398 |
| 61 | 623 | 397 | 72.5 | 73 | 195 | 610 | 70 | 435 | 5 | 398 |
All measurements in millimetres unless marked (°) for angles.
