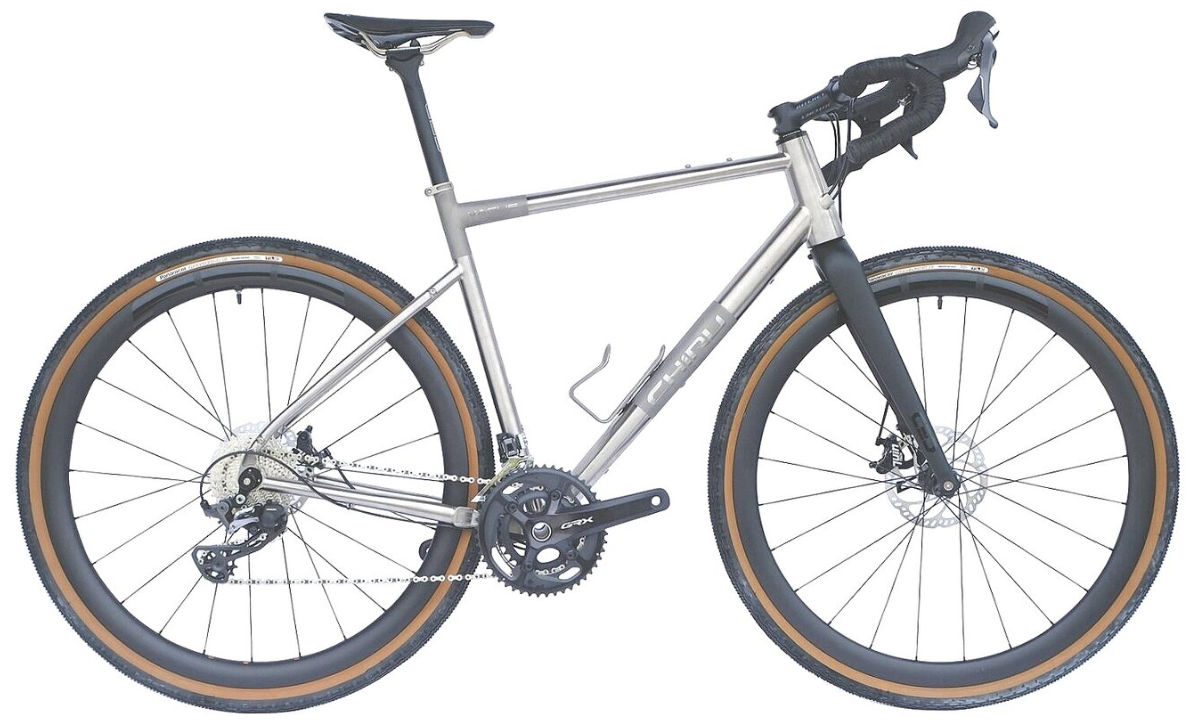

2020 Chiru Vagus geometry
Full frame geometry for the 2020 Chiru Vagus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 370 | 75 | 70.2 | 120 | 520 | 475 | 776 | 71 | 602 | 428 | 1020 | 50 | 74 |
| S | 554 | 379 | 74.2 | 70.5 | 135 | 535 | 500 | 801 | 70 | 607 | 430 | 1027 | 50 | 72 |
| M | 580 | 385 | 73.5 | 71 | 160 | 550 | 530 | 830 | 70 | 610 | 430 | 1030 | 50 | 69 |
| L | 600 | 390 | 73.2 | 71.5 | 180 | 570 | 540 | 846 | 70 | 624 | 433 | 1047 | 50 | 66 |
| XL | 622 | 400 | 73 | 72.5 | 200 | 590 | 560 | 870 | 68 | 631 | 433 | 1055 | 50 | 59 |
All measurements in millimetres unless marked (°) for angles.
