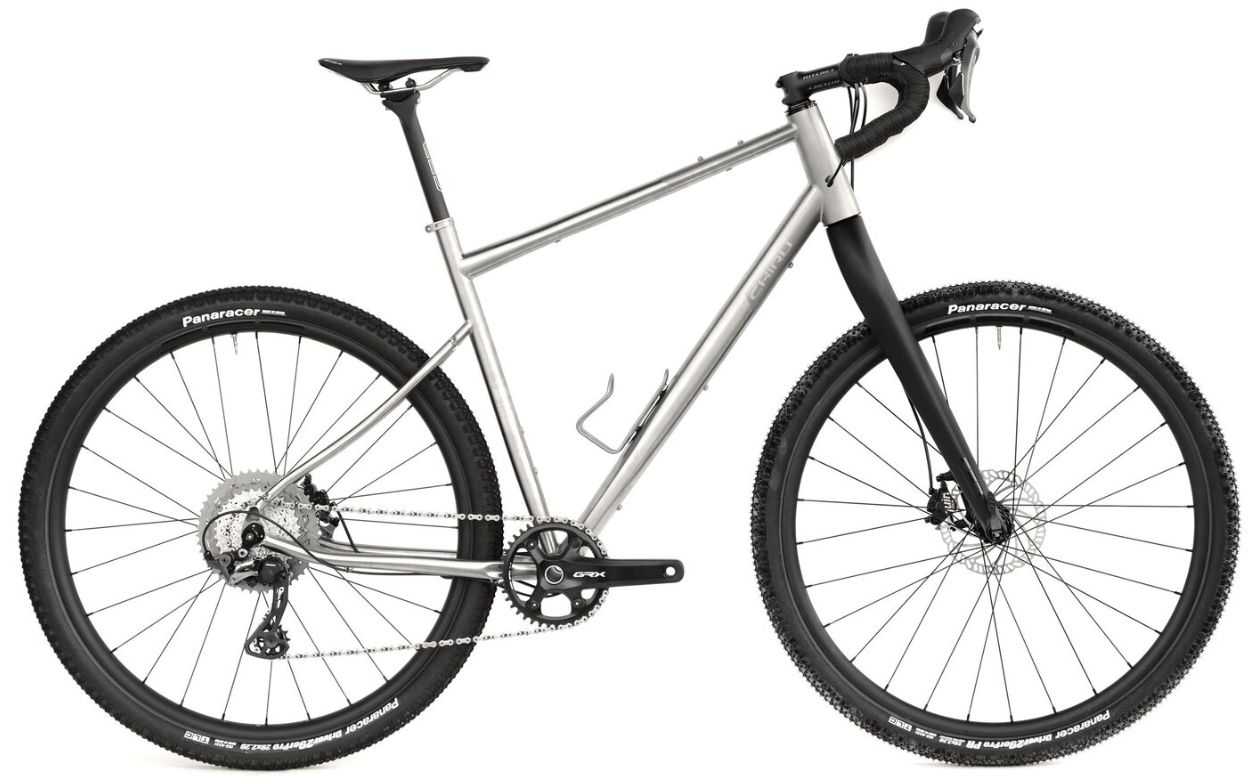

2020 Chiru Kegeti geometry
Full frame geometry for the 2020 Chiru Kegeti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 365 | 74 | 69.5 | 130 | 545 | 445 | 808 | 70 | 630 | 445 | 1066 | 50 | 80 |
| M | 637 | 383 | 74 | 70 | 140 | 565 | 500 | 843 | 70 | 645 | 445 | 1081 | 50 | 77 |
| L | 670 | 385 | 73.5 | 71 | 170 | 580 | 545 | 883 | 70 | 644 | 450 | 1085 | 50 | 70 |
| XL | 689 | 396 | 73.5 | 71 | 190 | 600 | 565 | 903 | 70 | 665 | 450 | 1106 | 50 | 70 |
All measurements in millimetres unless marked (°) for angles.
